Carley CL1311 - 1311

Lamp	CL1311
Description	Welch Allyn WA06100 Equivalent by Carley
Brand	Carley
MPN	1311

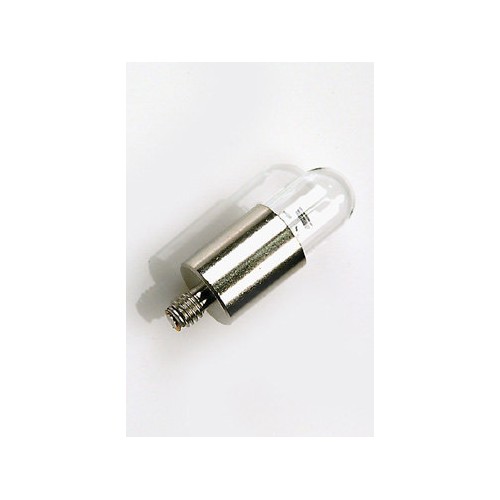

The CL1311 Carley 1311 is a Halogen/Xenon T3 15.1V 34.13W Lamp with a 10-32 TPI Thread base.

Specifications for the 1311 Carley CL1311 Replacement Lamp

GENERAL CHARACTERISTICS
Shape	T3
Lamp Base	10-32 TPI Thread
Bulb Finish	Clear
Rated Life	100 hours

PHOTOMETRIC CHARACTERISTICS

ELECTRICAL CHARACTERISTICS
Watts	34.13 W
Volts	15.1 V

DIMENSIONS

PRODUCT INFORMATION
Product Code	1311
Family Name	Carley Lamps Medical
Description	CL1311
SKU Qty	1
Sales Unit	Each

Carley CL1311 1311 Replacement Bulb Applications & Features

Applications

Medical

Features

Carley 1311 15.1V 2.26 Amps Medical Bulb
Examination Instruments Lamp
Nickel Plated
Halogen Xenon Fill
Welch Allyn 06100-U Equivalent
WA06100 Equivalent
WA 06100 Equivalent
Carley CL1311

Carley CL1311 1311 Replacement Lamp

Equipment

Welch Allyn 48435 Examination Light
Welch Allyn 48400 Examination Light

CL1311 Carley Halogen Lamp

DANGER! The Carley CL1311 replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
Only use the Carley CL1311 replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
Do not use the CL1311 Carley replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
Do not touch the Carley CL1311 bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the CL1311 Carley replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
Never touch the Carley CL1311 lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
Always turn off the electrical power before inserting, removing, or cleaning the replacement Carley CL1311 lamp.
Affix the CL1311 Carley replacement lamp securely in the socket. Improper installation of the Carley CL1311 replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
Keep the temperature of the Carley CL1311 lamp seal below 350C.
Keep the temperature of the CL1311 Carley replacement lamp wall above 250C.
Keep the temperature of the Carley CL1311 lamp wall below 800C.
Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
Carley CL1311 replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
Operate the Carley CL1311 replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
Use an external fuse when required.
Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
