Carley CL1464 - 1464

Lamp	CL1464
Description	Welch Allyn WA00300 Equivalent by Carley
Brand	Carley
MPN	1464

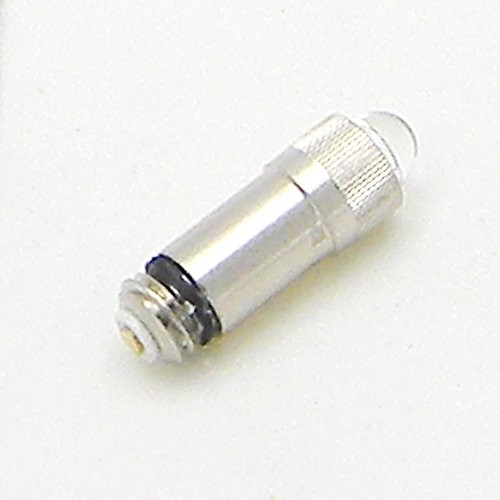

The CL1464 Carley 1464 is a Halogen/Xenon TL1.5 3.5V 2.835W Lamp with a 12-28 UNF 2A Thread base.

Specifications for the 1464 Carley CL1464 Replacement Lamp

GENERAL CHARACTERISTICS
Shape	TL1.5
Lamp Base	12-28 UNF 2A Thread
Bulb Finish	Clear
Rated Life	20 hours

PHOTOMETRIC CHARACTERISTICS

ELECTRICAL CHARACTERISTICS
Watts	2.835 W
Volts	3.5 V

DIMENSIONS

PRODUCT INFORMATION
Product Code	1464
Family Name	Carley Lamps Medical
Description	CL1464
SKU Qty	1
Sales Unit	Each

Carley CL1464 1464 Replacement Bulb Applications & Features

Applications

Medical

Features

Carley 1464 .81 Amps Medical Bulb
Nickel Plated
Halogen Xenon Fill
Welch Allyn 00300-U Equivalent
WA00300 Equivalent
WA 00300 Equivalent
Carley CL1464

Carley CL1464 1464 Replacement Lamp

Equipment

Welch Allyn 60835

CL1464 Carley Halogen Lamp

DANGER! The Carley CL1464 replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
Only use the Carley CL1464 replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
Do not use the CL1464 Carley replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
Do not touch the Carley CL1464 bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the CL1464 Carley replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
Never touch the Carley CL1464 lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
Always turn off the electrical power before inserting, removing, or cleaning the replacement Carley CL1464 lamp.
Affix the CL1464 Carley replacement lamp securely in the socket. Improper installation of the Carley CL1464 replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
Keep the temperature of the Carley CL1464 lamp seal below 350C.
Keep the temperature of the CL1464 Carley replacement lamp wall above 250C.
Keep the temperature of the Carley CL1464 lamp wall below 800C.
Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
Carley CL1464 replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
Operate the Carley CL1464 replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
Use an external fuse when required.
Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
