GE F26DBX/830/ECO4P - 97611

GE
Lamp F26DBX/830/ECO4P
Description 26W CRI 82 T4 4-Pin (G24q-3) 3000K ECO
Brand GE
MPN 97611
UPC 043168976114

$3.74

In Stock

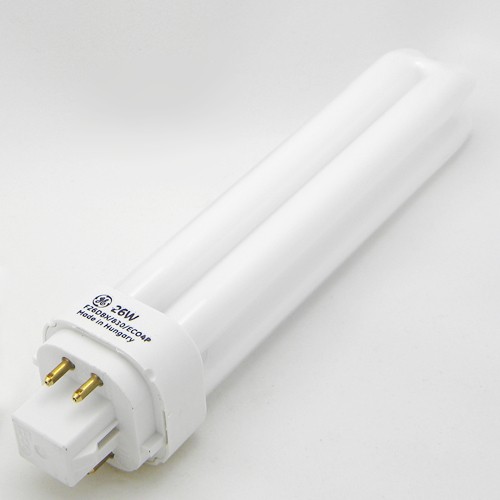

The F26DBX/830/ECO4P GE 97611 is a 4-Pin Compact Fluorescent T4 26W Lamp with a G24q-3 base.
Specifications for the 97611 GE F26DBX/830/ECO4P Replacement Lamp
GENERAL CHARACTERISTICS
Shape T4
Lamp Base G24q-3 (4-Pin)
Bulb Finish White
Rated Life 12000 hours
PHOTOMETRIC CHARACTERISTICS
Initial Lumens 1710
Color Temperature 3000 K
Color Rendering Index (CRI) 82
ELECTRICAL CHARACTERISTICS
Watts 26 W
DIMENSIONS
Maximum Overall Length - MOL 6.40in (162.60mm)
PRODUCT INFORMATION
Product Code 97611
Family Name GE Ecolux Biax / 4-Pin Double Biax
Description F26DBX/830/ECO4P
SKU Qty 1
Case Qty (Price Listed is Per Bulb) 10
Sales Unit Each
UPC 043168976114
GE F26DBX/830/ECO4P 97611 Replacement Bulb Applications & Features

Applications

  • Facilities
  • Retail Display
  • Hospitality
  • Office
  • Restaurant
  • Warehouse


Features

  • General Electric F26DBX830ECO4P Ecolux CFL
  • 4-Pin Double Biax Bulb
  • GE Plug-in Compact Fluorescent Lamp
  • High Color Rendering
  • Energy Savings
  • Warm White Color Tone
  • Quad Tube
  • Dimmable with Appropriate Dimming Ballast
  • EOL Protection
  • Biax D ECO 26W 4 Pin
F26DBX/830/ECO4P GE Compact Fluorescent Lamp
  • The F26DBX/830/ECO4P GE fluorescent lamps operate at high surface temperatures that can cause serious physical injuries.
  • Turn power off and allow adequate time (approximately 10 minutes) for the GE F26DBX/830/ECO4P lamp to cool before attempting replacement.
  • In order to avoid the risk of electrical shock, make sure the power to the fixture is turned off when replacing the F26DBX/830/ECO4P GE.
  • The GE F26DBX/830/ECO4P lamps are very fragile. Do not drop, crush, bend or shake them.
  • The F26DBX/830/ECO4P GE fluorescent tubes may shatter with considerable force when broken.
  • To ensure that the GE F26DBX/830/ECO4P lamps remain in the sockets for the duration of the operation, make sure that the fixture’s sockets are not worn prior to installation of the lamps.
  • If the F26DBX/830/ECO4P GE lamps are installed in worn sockets, the lamps could fall out of the fixture during operation.
  • Never operate GE F26DBX/830/ECO4P lamp above or below its rated current voltage.
  • Electrical connections should be clean and in good condition. Replace the F26DBX/830/ECO4P GE lamp holders and sockets when needed.
  • Affix the GE F26DBX/830/ECO4P lamp securely in the socket. Improper installations will cause electrical arcing, overheating and short life to the lamp and socket.
  • Do not look directly at the operating lamp for any period of time; this may cause serious eye injury.
  • F26DBX/830/ECO4P GE fluorescent lamp use is not recommended in extreme weather conditions.
  • Excessive cold/warm temperatures dramatically affects the GE F26DBX/830/ECO4P starting, lamp life and lumen maintenance.
