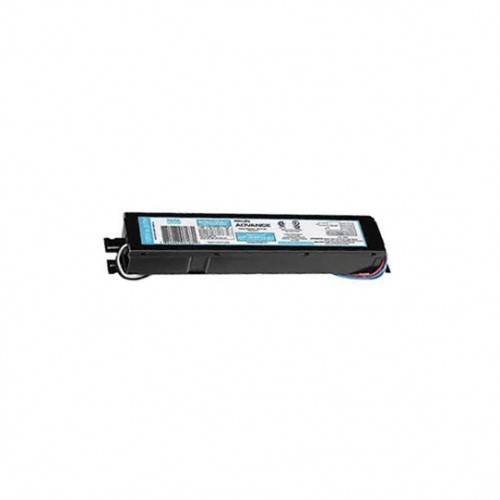

Philips Advance ICN-4P32-N - 10639
| Ballast | ICN-4P32-N |
| Description | 120/277 Volt 3-4 Lamp Electronic Ballast |
| Brand | Philips Advance |
| MPN | 10639 |
| UPC | 781087091517 |
Philips Advance ICN-4P32-N 120/277 Volt Centium 3-4 Lamp Electronic Ballast
Specifications for 10639 Philips Advance ICN-4P32-N Replacement Ballast
| Item | ICN-4P32-N |
| Ballast Type | Electronic |
| Start Type | Instant |
| Lamp Type | T8 |
| Ballast Family | Centium™ |
| Number of Lamps | 4 |
| Lamps | F17T8 Lamps 3 or 4 F25T8 Lamps 3 or 4F28T8 Lamps 3 or 4F32T8 Lamps 3 or 4F40T8 Lamps 3 |
| Voltage | 120/277 |
| Min. Starting Temp | 0° F |
| Amps AC | 0.94 to 0.41 |
| Input Watts | 112 |
| Wiring Type | Parallel |
| Ballast Factor | 0.88 |
| Power Factor | Greater Than 0.98 |
| Total Harmonic Distortion | Less Than 10% |
| Length | 9.50in (241.30mm) |
| Width | 1.69in (42.93mm) |
| Height | 1.19in (1.19mm) |
Philips Advance ICN-4P32-N 10639 Replacement Ballast Applications & Features
T8 Fluorescent Ballast
Ballast For
- (3 or 4) F17T8
- (3 or 4) F25T8
- (3 or 4) F32T8
- (3 or 4) F32T8/ES
- (3) F40T8
- (3 or 4) FBO16T8
- (3 or 4) FBO24T8
- U Bend T8 lamps
Features
- ICN4P32N Instant Start Electronic Fluorescent Ballast
- Minimum Start Temperature 0°F
- Sound Rated A
- High Power Factor
- For T8 Linear Fluorescent Lamps
- IntelliVolt
