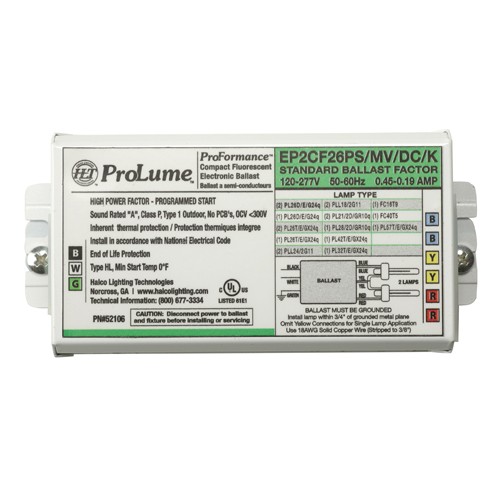

ProLume EP2CF26PS/MV/DC/K - 52106
| Ballast | EP2CF26PS/MV/DC/K |
| Description | 120/277 Volt 1-2 Lamp Electronic Ballast |
| Brand | ProLume |
| MPN | 52106 |
| UPC | 807154521067 |
ProLume EP2CF26PS/MV/DC/K 120/277 Volt ProFormance 1-2 Lamp Electronic Ballast
Specifications for 52106 ProLume EP2CF26PS/MV/DC/K Replacement Ballast
| Item | EP2CF26PS/MV/DC/K |
| Ballast Type | Electronic |
| Start Type | Programmed Start |
| Lamp Type | Compact Fluorescent |
| Number of Lamps | 1 or 2 |
| Lamps | 1 FC40T5 Lamp1 FC16T9 Lamp 2 L26D/E/G24q Lamps1 PL26D/E/G24q Lamp2 PL26T/E/GX24q Lamps1 PL26T/E/GX24q Lamp1 PL42T/E/GX24q Lamp1 PL57T/E/GX24q Lamp2 PLL18/2G11 Lamps2 PLL24/2G11 Lamps2 PL21/2D/GR10q Lamps1 PL28/2D/GR10q Lamp |
| Voltage | 120-277V |
| Min. Starting Temp | 0°F |
| Wiring Type | Series |
| Ballast Factor | 1 |
| Power Factor | 0.99 |
| Length | 4.63in (11.76mm) |
| Width | 2.41in (6.12mm) |
| Height | 1.00in (1.00mm) |
ProLume EP2CF26PS/MV/DC/K 52106 Replacement Ballast Applications & Features
Circline Fluorescent Ballast
Compact Fluorescent Electronic Ballast Kit
Ballast For
- (1) FC16T9
- (1) FC40T5
- (2) PL21/2D/GR10q
- (1 or 2) PL26D/E/G24q
- (1 or 2) PL26T/E/GX24q
- (1) PL28/2D/GR10q
- (1) PL32T/E/GX24q
- (1) PL42T/E/GX24q
- (1) PL57T/E/GX24q
- (2) PLL18/2G11
- (2) PLL24/2G11
Features
- EP2CF26PSMVDCK Programmed Start Electronic Ballast
- Minimum Start Temperature 0°F
- Sound Rated A
- High Power Factor
- For T4 Double Tube Compact Fluorescent Lamps
- For T5 Circline Fluorescent Lamps
- For T5 2D Compact Fluorescent Lamps
- For T9 Circline Fluorescent Lamps
- CFL Kit Contains (1 each)
- Dual Connection Programmed Start Ballast
- Mounting Bracket & Hardware
- Lead Wire Set
- Wire Removal Tool
