ProLume F8T5DL - 9215

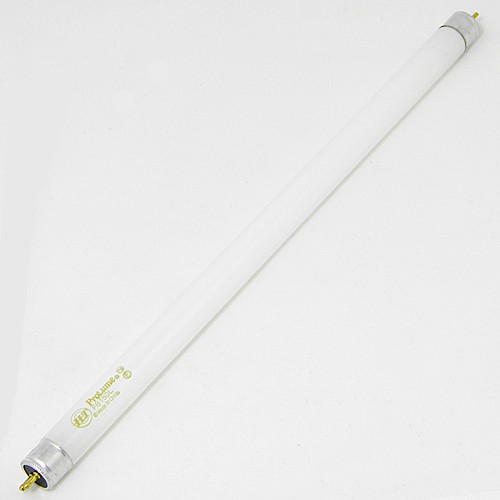

The F8T5DL ProLume 9215 is a Fluorescent T5 8W Lamp with a G5 base.
Specifications for the 9215 ProLume F8T5DL Replacement Lamp
| GENERAL CHARACTERISTICS | |
| Shape | T5 |
| Lamp Base | G5 (Miniature 2-Pin) |
| Bulb Finish | Daylight |
| Rated Life | 6000 hours |
| Operating Position | Universal |
| PHOTOMETRIC CHARACTERISTICS | |
| Initial Lumens | 330 |
| Color Temperature | 6500 K |
| Color Rendering Index (CRI) | 75 |
| ELECTRICAL CHARACTERISTICS | |
| Watts | 8 W |
| DIMENSIONS | |
| Maximum Overall Length - MOL | 12.00in (304.80mm) |
| Diameter | 0.63in (15.90mm) |
| PRODUCT INFORMATION | |
| Product Code | 9215 |
| Family Name | ProLume T5 Fluorescent Lamps |
| Description | F8T5DL |
| SKU Qty | 1 |
| Case Qty (Price Listed is Per Bulb) | 10 |
| Sales Unit | Each |
| UPC | 807154092154 |
ProLume F8T5DL 9215 Replacement Bulb Applications & Features
Applications
- Dental Lighting
- General Lighting
Features
- Prolume F8T5DL Daylight Bulb
- Preheat
- Energy Saving Linear Fluorescent Tube
ProLume F8T5DL 9215 Replacement Lamp
Equipment
- Star Dental TR130
- Star Dental Endodonic Viewer
F8T5DL ProLume Fluorescent Lamp
- The F8T5DL ProLume fluorescent lamps operate at high surface temperatures that can cause serious physical injuries.
- Turn power off and allow adequate time (approximately 10 minutes) for the ProLume F8T5DL lamp to cool before attempting replacement.
- In order to avoid the risk of electrical shock, make sure the power to the fixture is turned off when replacing the F8T5DL ProLume.
- The ProLume F8T5DL lamps are very fragile. Do not drop, crush, bend or shake them.
- The F8T5DL ProLume fluorescent tubes may shatter with considerable force when broken.
- To ensure that the ProLume F8T5DL lamps remain in the sockets for the duration of the operation, make sure that the fixture’s sockets are not worn prior to installation of the lamps.
- If the F8T5DL ProLume lamps are installed in worn sockets, the lamps could fall out of the fixture during operation.
- Never operate ProLume F8T5DL lamp above or below its rated current voltage.
- Electrical connections should be clean and in good condition. Replace the F8T5DL ProLume lamp holders and sockets when needed.
- Affix the ProLume F8T5DL lamp securely in the socket. Improper installations will cause electrical arcing, overheating and short life to the lamp and socket.
- Do not look directly at the operating lamp for any period of time; this may cause serious eye injury.
- F8T5DL ProLume fluorescent lamp use is not recommended in extreme weather conditions.
- Excessive cold/warm temperatures dramatically affects the ProLume F8T5DL starting, lamp life and lumen maintenance.
