TecNiq D30-WB0B-1 Load Ramp Light
| Light | D30-WB0B-1 Load Ramp Light |
| LED Color | White |
| Lens Color | Clear |
| Description | LED High Output Surface Mount Load Light w/ .180 Bullets |
| Brand | TecNiq |
| MPN | D30-WB0B-1 |

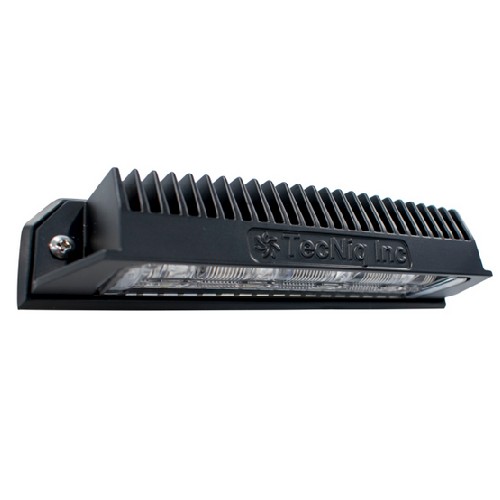

The TecNiq D30-WB0B-1 is a Surface mounted LED High Output Surface Mount Load Light that has white LEDs, a clear lens, and 12" wire W/ .180 Bullet connection.
Specifications for D30-WB0B-1 TecNiq D30-WB0B-1 Load Ramp Light Replacement Light
| GENERAL CHARACTERISTICS | |
| Lens Color | Clear |
| LED Color | White |
| Mount | Surface |
| Diodes | 4 |
| Raw Lumens | 2000 |
| Connector | 12" Wire W/ 0.180" bullet |
| Current | 1.3A - 1.9A |
| ELECTRICAL CHARACTERISTICS | |
| Volts | 9-30V DC |
| DIMENSIONS | |
| Diameter | 1.76in (44.70mm) |
| PRODUCT INFORMATION | |
| Product Code | D30-WB0B-1 |
| Series | D30 Load Ramp Light |
| Description | D30-WB0B-1 Load Ramp Light |
| SKU Qty | 1 |
| Sales Unit | Each |
TecNiq D30-WB0B-1 Load Ramp Light Replacement Light Applications & Features
Features
- Extremely durable surface mounted load light
- Aluminum heat sink housing, finished in a black powder coat will keep this light looking great for years of use
- Includes a form fitting TPE gasket, which has excellent chemical and UV resistance
- 2000 lumens of bright white light
- IP68 Rated – Water & dust proof
- Surface mount installation
Literature for the TecNiq D30-WB0B-1 Load Ramp Light Replacement Light
 D30 Load Ramp Light Spec.1 |
| D30 Load Ramp Light Spec.2 |
Warranty information for the TecNiq D30-WB0B-1 Load Ramp Light D30-WB0B-1 Replacement Light
| TecNiq Limited Warranties and Procedures |
