GE EHD - 88624
| Lamp | EHD (Q500CL/TP) |
| Description | 120V 500W 2-Pin (G9.5) 2900K |
| Brand | GE |
| MPN | 88624 |
| Previous MPN | 39768 |
| UPC | 043168886246 |

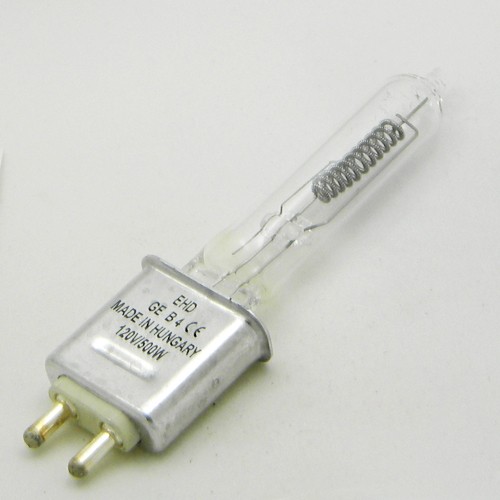

The EHD GE 88624 is a Halogen T6 120V 500W Lamp with a G9.5 base.
Specifications for the 88624 GE EHD Replacement Lamp
| GENERAL CHARACTERISTICS | |
| Shape | T6 |
| Lamp Base | G9.5 (Medium 2-Pin) |
| Filament | CC-8 |
| Bulb Finish | Clear |
| Rated Life | 2000 hours |
| Light Center Length - LCL | 2.37in (60.30mm) |
| Operating Position | Universal |
| PHOTOMETRIC CHARACTERISTICS | |
| Initial Lumens | 10000 |
| Color Temperature | 2900 K |
| ELECTRICAL CHARACTERISTICS | |
| Watts | 500 W |
| Volts | 120 V |
| DIMENSIONS | |
| Maximum Overall Length - MOL | 4.13in (104.90mm) |
| Diameter | 0.75in (19.10mm) |
| PRODUCT INFORMATION | |
| Product Code | 88624 |
| Family Name | GE Quartzline T6 - Stage & Studio Lamp |
| Description | EHD |
| Ordering Code | Q500CL/TP |
| SKU Qty | 1 |
| Case Qty (Price Listed is Per Bulb) | 24 |
| Sales Unit | Each |
| UPC | 043168886246 |
GE EHD 88624 Replacement Bulb Applications & Features
Applications
- Stage Studio
Features
- General Electric EHD-Q500CL/TP Halogen Bulb
- Single Ended Lamp
- Metal Base
- Colortran 176-031
- Previous General Electric Code 39768
GE EHD 88624 Replacement Lamp
Equipment
- Altman 3.5Q-MT-12 Ellipsoidal
EHD GE Halogen Lamp
- DANGER! The GE EHD Q500CL/TP replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
- Only use the GE EHD replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
- Do not use the Q500CL/TP EHD GE replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
- Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
- Do not touch the GE EHD bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
- Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the EHD GE replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
- Never touch the GE EHD lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
- Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
- Always turn off the electrical power before inserting, removing, or cleaning the replacement GE EHD lamp.
- Affix the EHD GE replacement lamp securely in the socket. Improper installation of the GE EHD replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
- Keep the temperature of the GE EHD lamp seal below 350C.
- Keep the temperature of the EHD GE replacement lamp wall above 250C.
- Keep the temperature of the GE EHD Q500CL/TP lamp wall below 800C.
- Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
- GE EHD replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
- Operate the GE EHD Q500CL/TP replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
- Use an external fuse when required.
- Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
