GE ESN - 44385

Lamp	ESN (Q100CL/MC/2V)
Description	120V 100W Mini Can (E11) Clear
Brand	GE
MPN	44385
UPC	043168443852

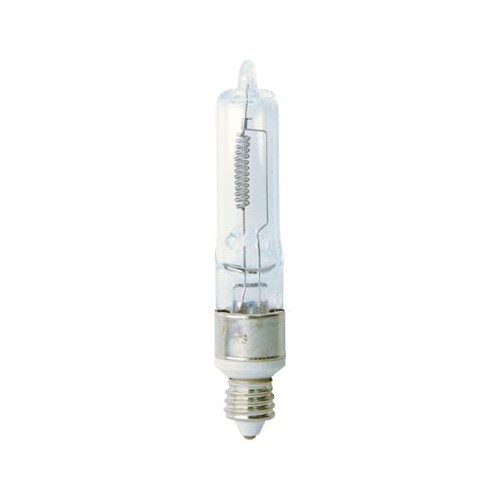

The ESN GE 44385 is a Halogen T4 120V 100W Lamp with an E11 base.

Specifications for the 44385 GE ESN Replacement Lamp

GENERAL CHARACTERISTICS
Shape	T4
Lamp Base	E11 (Mini Candelabra Screw)
Filament	CC-2V
Bulb Finish	Clear
Rated Life	750 hours
Light Center Length - LCL	1.38in (34.90mm)
Operating Position	Universal

PHOTOMETRIC CHARACTERISTICS
Initial Lumens	1800
Color Temperature	2950 K

ELECTRICAL CHARACTERISTICS
Watts	100 W
Volts	120 V

DIMENSIONS
Maximum Overall Length - MOL	2.81in (71.40mm)
Diameter	0.50in (12.70mm)

PRODUCT INFORMATION
Product Code	44385
Family Name	GE Quartzline Tungsten Halogen Lamp
Description	ESN
Ordering Code	Q100CL/MC/2V
SKU Qty	1
Case Qty (Price Listed is Per Bulb)	6
Sales Unit	Each
UPC	043168443852

GE ESN 44385 Replacement Bulb Applications & Features

Applications

Studio

Features

General Electric ESN-Q100CL/MC/2V Halogen Bulb
Single Ended Lamp
Replacement Lamp for Modeling Light

ESN GE Halogen Lamp

DANGER! The GE ESN Q100CL/MC/2V replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
Only use the GE ESN replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
Do not use the Q100CL/MC/2V ESN GE replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
Do not touch the GE ESN bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the ESN GE replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
Never touch the GE ESN lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
Always turn off the electrical power before inserting, removing, or cleaning the replacement GE ESN lamp.
Affix the ESN GE replacement lamp securely in the socket. Improper installation of the GE ESN replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
Keep the temperature of the GE ESN lamp seal below 350C.
Keep the temperature of the ESN GE replacement lamp wall above 250C.
Keep the temperature of the GE ESN Q100CL/MC/2V lamp wall below 800C.
Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
GE ESN replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
Operate the GE ESN Q100CL/MC/2V replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
Use an external fuse when required.
Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
