GE ETC - 43693

Lamp	ETC (Q150CL/DC)
Description	120V 150W DC Bay (BA15d) Clear
Brand	GE
MPN	43693
UPC	043168436939

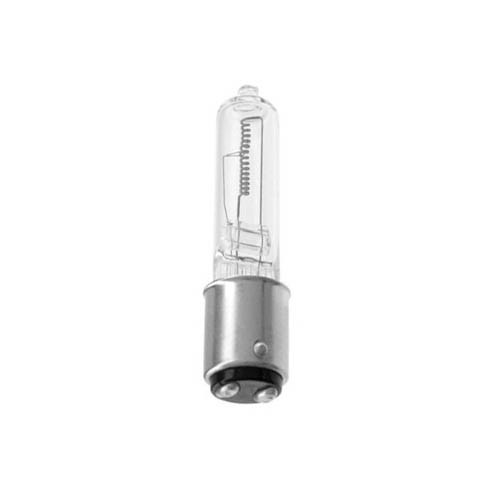

The ETC GE 43693 is a Halogen T4 120V 150W Lamp with a BA15d base.

Specifications for the 43693 GE ETC Replacement Lamp

GENERAL CHARACTERISTICS
Shape	T4
Lamp Base	BA15d (Double Contact Bayonet)
Filament	CC-8
Bulb Finish	Clear
Rated Life	2000 hours
Light Center Length - LCL	1.38in (34.90mm)
Operating Position	Universal

PHOTOMETRIC CHARACTERISTICS
Initial Lumens	2800
Color Temperature	2950 K

ELECTRICAL CHARACTERISTICS
Watts	150 W
Volts	120 V

DIMENSIONS
Maximum Overall Length - MOL	2.50in (63.50mm)
Diameter	0.50in (12.70mm)

PRODUCT INFORMATION
Product Code	43693
Family Name	GE Quartzline Tungsten Halogen Lamp
Description	ETC
Ordering Code	Q150CL/DC
SKU Qty	1
Case Qty (Price Listed is Per Bulb)	6
Sales Unit	Each
UPC	043168436939

GE ETC 43693 Replacement Bulb Applications & Features

Applications

Medical
Studio

Features

General Electric ETC-Q150CL/DC Halogen Bulb
Single Ended Lamp
Replacement Lamp for Modeling Light

GE ETC 43693 Replacement Lamp

Equipment

Castle/MDT 8415P

ETC GE Halogen Lamp

DANGER! The GE ETC Q150CL/DC replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
Only use the GE ETC replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
Do not use the Q150CL/DC ETC GE replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
Do not touch the GE ETC bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the ETC GE replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
Never touch the GE ETC lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
Always turn off the electrical power before inserting, removing, or cleaning the replacement GE ETC lamp.
Affix the ETC GE replacement lamp securely in the socket. Improper installation of the GE ETC replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
Keep the temperature of the GE ETC lamp seal below 350C.
Keep the temperature of the ETC GE replacement lamp wall above 250C.
Keep the temperature of the GE ETC Q150CL/DC lamp wall below 800C.
Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
GE ETC replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
Operate the GE ETC Q150CL/DC replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
Use an external fuse when required.
Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
