GE F13DBX23/827/ECO - 97586

GE
Lamp F13DBX23/827/ECO
Description 13W 120V CRI 82 T4 2-Pin (GX23-2) 2700K ECO
Brand GE
MPN 97586
UPC 043168975865

$2.44

In Stock

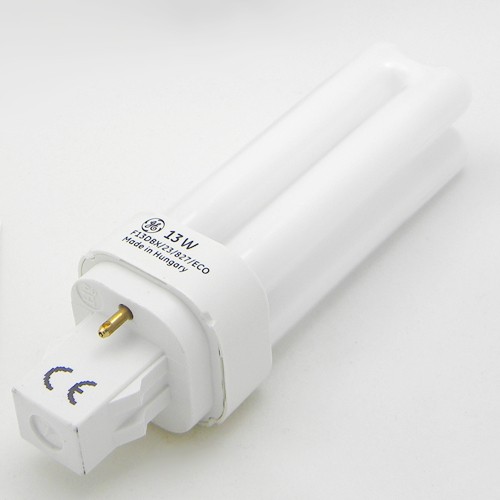

The F13DBX23/827/ECO GE 97586 is a 2-Pin Compact Fluorescent T4 120V 13W Lamp with a GX23-2 base.
Specifications for the 97586 GE F13DBX23/827/ECO Replacement Lamp
GENERAL CHARACTERISTICS
Shape T4
Lamp Base GX23-2 (2-Pin)
Bulb Finish White
Rated Life 10000 hours
PHOTOMETRIC CHARACTERISTICS
Initial Lumens 810
Color Temperature 2700 K
Color Rendering Index (CRI) 82
ELECTRICAL CHARACTERISTICS
Watts 13 W
Volts 120 V
DIMENSIONS
Maximum Overall Length - MOL 4.84in (122.90mm)
PRODUCT INFORMATION
Product Code 97586
Family Name GE Ecolux Biax / 2-Pin Double Biax
Description F13DBX23/827/ECO
SKU Qty 1
SKU / Case Qty 10
Case Qty (Price Listed is Per Bulb) 10
Sales Unit Each
UPC 043168975865
GE F13DBX23/827/ECO 97586 Replacement Bulb Applications & Features

Applications

  • Facilities
  • Retail Display
  • Hospitality
  • Office
  • Restaurant
  • Warehouse


Features

  • General Electric F13DBX23/827ECO Ecolux Biax CFL
  • 2-Pin Double Biax Bulb
  • GE Plug-in Compact Fluorescent Lamp
  • High Color Rendering
  • Energy Saving
  • Biax D ECO 13W 2 Pin
F13DBX23/827/ECO GE Compact Fluorescent Lamp
  • The F13DBX23/827/ECO GE fluorescent lamps operate at high surface temperatures that can cause serious physical injuries.
  • Turn power off and allow adequate time (approximately 10 minutes) for the GE F13DBX23/827/ECO lamp to cool before attempting replacement.
  • In order to avoid the risk of electrical shock, make sure the power to the fixture is turned off when replacing the F13DBX23/827/ECO GE.
  • The GE F13DBX23/827/ECO lamps are very fragile. Do not drop, crush, bend or shake them.
  • The F13DBX23/827/ECO GE fluorescent tubes may shatter with considerable force when broken.
  • To ensure that the GE F13DBX23/827/ECO lamps remain in the sockets for the duration of the operation, make sure that the fixture’s sockets are not worn prior to installation of the lamps.
  • If the F13DBX23/827/ECO GE lamps are installed in worn sockets, the lamps could fall out of the fixture during operation.
  • Never operate GE F13DBX23/827/ECO lamp above or below its rated current voltage.
  • Electrical connections should be clean and in good condition. Replace the F13DBX23/827/ECO GE lamp holders and sockets when needed.
  • Affix the GE F13DBX23/827/ECO lamp securely in the socket. Improper installations will cause electrical arcing, overheating and short life to the lamp and socket.
  • Do not look directly at the operating lamp for any period of time; this may cause serious eye injury.
  • F13DBX23/827/ECO GE fluorescent lamp use is not recommended in extreme weather conditions.
  • Excessive cold/warm temperatures dramatically affects the GE F13DBX23/827/ECO starting, lamp life and lumen maintenance.
