GE FGT - 41229

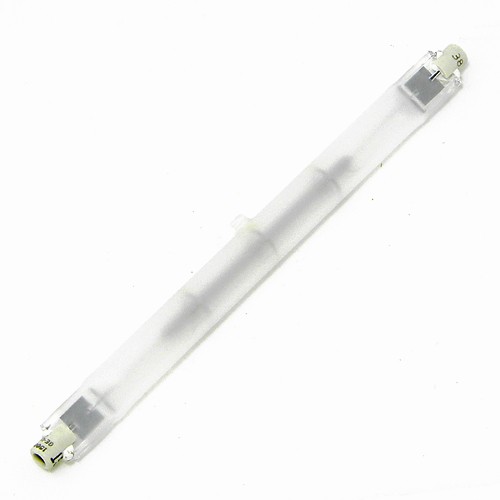

The FGT GE 41229 is a Halogen T4 120V 1500W Lamp with a R7s base.
Specifications for the 41229 GE FGT Replacement Lamp
| GENERAL CHARACTERISTICS | |
| Shape | T4 |
| Lamp Base | R7s (Recessed Single Contact) |
| Filament | C-8 |
| Bulb Finish | Frost |
| Rated Life | 400 hours |
| Operating Position | Horiz ±4° |
| PHOTOMETRIC CHARACTERISTICS | |
| Initial Lumens | 40200 |
| Color Temperature | 3200 K |
| ELECTRICAL CHARACTERISTICS | |
| Watts | 1500 W |
| Volts | 120 V |
| DIMENSIONS | |
| Maximum Overall Length - MOL | 6.56in (166.60mm) |
| Diameter | 0.50in (13.00mm) |
| PRODUCT INFORMATION | |
| Product Code | 41229 |
| Family Name | GE Quartzline Showbiz T4 - Stage & Studio Lamp |
| Description | FGT |
| Ordering Code | Q1500T4/4 |
| SKU Qty | 1 |
| Case Qty (Price Listed is Per Bulb) | 12 |
| Sales Unit | Each |
| UPC | 043168412292 |
GE FGT 41229 Replacement Bulb Applications & Features
Applications
- Stage Studio
Features
- General Electric FGT-Q1500T4/4 Frosted Halogen Bulb
- Double Ended Lamp
- Discontinued Lamp, Limited Stock Available
GE FGT 41229 Replacement Lamp
Equipment
- Altman FC-1 Cyclorama Light
- Altman EC-1 Cyclorama Light
- Altman Sky-Cyc-01 Cyclorama Light
FGT GE Halogen Lamp
- DANGER! The GE FGT Q1500T4/4 replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
- Only use the GE FGT replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
- Do not use the Q1500T4/4 FGT GE replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
- Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
- Do not touch the GE FGT bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
- Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the FGT GE replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
- Never touch the GE FGT lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
- Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
- Always turn off the electrical power before inserting, removing, or cleaning the replacement GE FGT lamp.
- Affix the FGT GE replacement lamp securely in the socket. Improper installation of the GE FGT replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
- Keep the temperature of the GE FGT lamp seal below 350C.
- Keep the temperature of the FGT GE replacement lamp wall above 250C.
- Keep the temperature of the GE FGT Q1500T4/4 lamp wall below 800C.
- Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
- GE FGT replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
- Operate the GE FGT Q1500T4/4 replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
- Use an external fuse when required.
- Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
