Hikari (Higuchi) J120V-1000W 254MM - J2229

Hikari (Higuchi)
Lamp J120V-1000W 254MM
Description 120V 1000W 254mm R7s Clear
Brand Hikari (Higuchi)
MPN J2229
UPC 844409001707

$3.56

In Stock

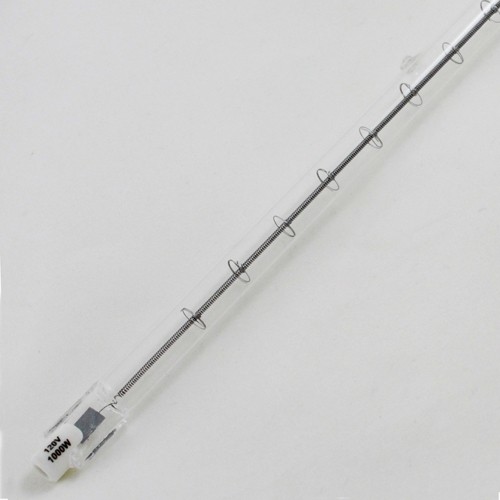

The J120V-1000W 254MM Hikari (Higuchi) J2229 is a Halogen T3 120V 1000W Lamp with a R7s base.
Specifications for the J2229 Hikari (Higuchi) J120V-1000W 254MM Replacement Lamp
GENERAL CHARACTERISTICS
Shape T3
Lamp Base R7s (Recessed Single Contact)
Bulb Finish Clear
PHOTOMETRIC CHARACTERISTICS
ELECTRICAL CHARACTERISTICS
Watts 1000 W
Volts 120 V
DIMENSIONS
Maximum Overall Length - MOL 10.06in (255.60mm)
PRODUCT INFORMATION
Product Code J2229
Family Name Hikari J Type
Description J120V-1000W 254MM
SKU Qty 1
Sales Unit Each
UPC 844409001707
Hikari (Higuchi) J120V-1000W 254MM J2229 Replacement Bulb Applications & Features

Features

  • Higuchi (Hikari) Halogen Lamp J-2229
  • Clear Bulb
  • Double Ended Lamp
  • Only for Use in Approved Halogen Fixtures
J120V-1000W 254MM Hikari (Higuchi) Halogen Lamp

  • DANGER! The Hikari (Higuchi) J120V-1000W 254MM replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
  • Only use the Hikari (Higuchi) J120V-1000W 254MM replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
  • Do not use the J120V-1000W 254MM Hikari (Higuchi) replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
  • Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
  • Do not touch the Hikari (Higuchi) J120V-1000W 254MM bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
  • Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the J120V-1000W 254MM Hikari (Higuchi) replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
  • Never touch the Hikari (Higuchi) J120V-1000W 254MM lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
  • Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
  • Always turn off the electrical power before inserting, removing, or cleaning the replacement Hikari (Higuchi) J120V-1000W 254MM lamp.
  • Affix the J120V-1000W 254MM Hikari (Higuchi) replacement lamp securely in the socket. Improper installation of the Hikari (Higuchi) J120V-1000W 254MM replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
  • Keep the temperature of the Hikari (Higuchi) J120V-1000W 254MM lamp seal below 350C.
  • Keep the temperature of the J120V-1000W 254MM Hikari (Higuchi) replacement lamp wall above 250C.
  • Keep the temperature of the Hikari (Higuchi) J120V-1000W 254MM lamp wall below 800C.
  • Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
  • Hikari (Higuchi) J120V-1000W 254MM replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
  • Operate the Hikari (Higuchi) J120V-1000W 254MM replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
  • Use an external fuse when required.
  • Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
