Hikari (Higuchi) JC12V-20W/GY6.35 - JC5034

Hikari (Higuchi)
Lamp JC12V-20W/GY6.35
Description JC GY6.35 12V 20W Clear
Brand Hikari (Higuchi)
MPN JC5034
UPC 844409000168

$0.81

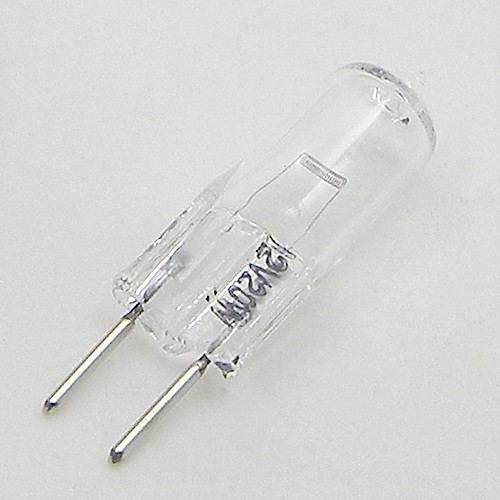

The JC12V-20W/GY6.35 Hikari (Higuchi) JC5034 is a Halogen 12V 20W Lamp with a GY6.35 base.
Specifications for the JC5034 Hikari (Higuchi) JC12V-20W/GY6.35 Replacement Lamp
GENERAL CHARACTERISTICS
Lamp Base GY6.35 (Glass 2-Pin)
Bulb Finish Clear
Rated Life 2000 hours
PHOTOMETRIC CHARACTERISTICS
Initial Lumens 320
Color Temperature 2800 K
ELECTRICAL CHARACTERISTICS
Watts 20 W
Volts 12 V
DIMENSIONS
Maximum Overall Length - MOL 1.18in (30.00mm)
Diameter 0.32in (8.00mm)
PRODUCT INFORMATION
Product Code JC5034
Family Name Hikari JC Type
Description JC12V-20W/GY6.35
SKU Qty 1
Case Qty (Price Listed is Per Bulb) 25
Sales Unit Each
UPC 844409000168
Hikari (Higuchi) JC12V-20W/GY6.35 JC5034 Replacement Bulb Applications & Features

Features

  • Higuchi (Hikari) Halogen Lamp JC-5034
JC12V-20W/GY6.35 Hikari (Higuchi) Halogen Lamp

  • DANGER! The Hikari (Higuchi) JC12V-20W/GY6.35 replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
  • Only use the Hikari (Higuchi) JC12V-20W/GY6.35 replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
  • Do not use the JC12V-20W/GY6.35 Hikari (Higuchi) replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
  • Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
  • Do not touch the Hikari (Higuchi) JC12V-20W/GY6.35 bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
  • Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the JC12V-20W/GY6.35 Hikari (Higuchi) replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
  • Never touch the Hikari (Higuchi) JC12V-20W/GY6.35 lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
  • Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
  • Always turn off the electrical power before inserting, removing, or cleaning the replacement Hikari (Higuchi) JC12V-20W/GY6.35 lamp.
  • Affix the JC12V-20W/GY6.35 Hikari (Higuchi) replacement lamp securely in the socket. Improper installation of the Hikari (Higuchi) JC12V-20W/GY6.35 replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
  • Keep the temperature of the Hikari (Higuchi) JC12V-20W/GY6.35 lamp seal below 350C.
  • Keep the temperature of the JC12V-20W/GY6.35 Hikari (Higuchi) replacement lamp wall above 250C.
  • Keep the temperature of the Hikari (Higuchi) JC12V-20W/GY6.35 lamp wall below 800C.
  • Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
  • Hikari (Higuchi) JC12V-20W/GY6.35 replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
  • Operate the Hikari (Higuchi) JC12V-20W/GY6.35 replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
  • Use an external fuse when required.
  • Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
