Hikari (Higuchi) JCD130V-35W/GY6.35 - JCD6009

Hikari (Higuchi)
Lamp JCD130V-35W/GY6.35
Description JCD 130V 35W GY6.35 Clear
Brand Hikari (Higuchi)
MPN JCD6009
UPC 844409000441

$2.33

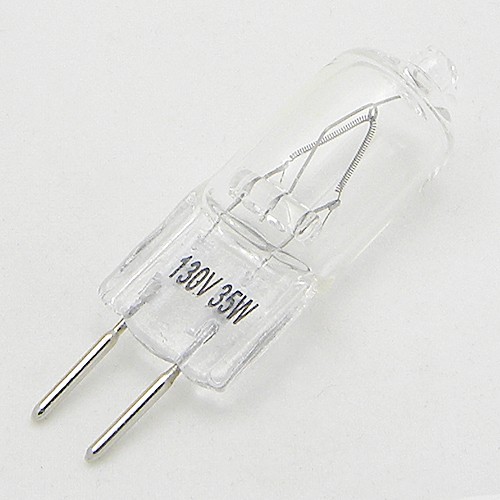

The JCD130V-35W/GY6.35 Hikari (Higuchi) JCD6009 is a Halogen 130V 35W Lamp with a GY6.35 base.
Specifications for the JCD6009 Hikari (Higuchi) JCD130V-35W/GY6.35 Replacement Lamp
GENERAL CHARACTERISTICS
Lamp Base GY6.35 (Glass 2-Pin)
Bulb Finish Clear
Rated Life 2000 hours
PHOTOMETRIC CHARACTERISTICS
Initial Lumens 400
Color Temperature 2700 K
ELECTRICAL CHARACTERISTICS
Watts 35 W
Volts 130 V
DIMENSIONS
Maximum Overall Length - MOL 1.89in (48.00mm)
Diameter 0.49in (12.50mm)
PRODUCT INFORMATION
Product Code JCD6009
Family Name Hikari JCD Type
Description JCD130V-35W/GY6.35
SKU Qty 1
Case Qty (Price Listed is Per Bulb) 100
Sales Unit Each
UPC 844409000441
Hikari (Higuchi) JCD130V-35W/GY6.35 JCD6009 Replacement Bulb Applications & Features

Features

  • Higuchi (Hikari) Halogen Lamp JCD-6009
JCD130V-35W/GY6.35 Hikari (Higuchi) Halogen Lamp

  • DANGER! The Hikari (Higuchi) JCD130V-35W/GY6.35 replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
  • Only use the Hikari (Higuchi) JCD130V-35W/GY6.35 replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
  • Do not use the JCD130V-35W/GY6.35 Hikari (Higuchi) replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
  • Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
  • Do not touch the Hikari (Higuchi) JCD130V-35W/GY6.35 bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
  • Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the JCD130V-35W/GY6.35 Hikari (Higuchi) replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
  • Never touch the Hikari (Higuchi) JCD130V-35W/GY6.35 lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
  • Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
  • Always turn off the electrical power before inserting, removing, or cleaning the replacement Hikari (Higuchi) JCD130V-35W/GY6.35 lamp.
  • Affix the JCD130V-35W/GY6.35 Hikari (Higuchi) replacement lamp securely in the socket. Improper installation of the Hikari (Higuchi) JCD130V-35W/GY6.35 replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
  • Keep the temperature of the Hikari (Higuchi) JCD130V-35W/GY6.35 lamp seal below 350C.
  • Keep the temperature of the JCD130V-35W/GY6.35 Hikari (Higuchi) replacement lamp wall above 250C.
  • Keep the temperature of the Hikari (Higuchi) JCD130V-35W/GY6.35 lamp wall below 800C.
  • Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
  • Hikari (Higuchi) JCD130V-35W/GY6.35 replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
  • Operate the Hikari (Higuchi) JCD130V-35W/GY6.35 replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
  • Use an external fuse when required.
  • Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
