Osram 64260 - 54022

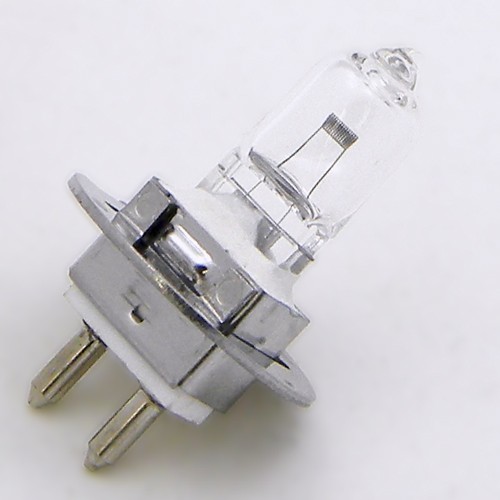

The 64260 Osram 54022 is a Halogen T3 12V 30W Lamp with a PG22 base.
Specifications for the 54022 Osram 64260 Replacement Lamp
| GENERAL CHARACTERISTICS | |
| Shape | T3 |
| Lamp Base | PG22 (2-Pin) |
| Bulb Finish | Clear |
| Rated Life | 50 hours |
| Light Center Length - LCL | 0.55in (14.00mm) |
| Operating Position | Universal |
| PHOTOMETRIC CHARACTERISTICS | |
| Initial Lumens | 800 |
| Color Temperature | 3300 K |
| ELECTRICAL CHARACTERISTICS | |
| Watts | 30 W |
| Volts | 12 V |
| DIMENSIONS | |
| Maximum Overall Length - MOL | 1.57in (40.00mm) |
| Diameter | 0.35in (9.00mm) |
| PRODUCT INFORMATION | |
| Product Code | 54022 |
| Family Name | Osram Low Voltage Halogen |
| Description | 64260 |
| LIF | M/185 |
| SKU Qty | 1 |
| Case Qty (Price Listed is Per Bulb) | 30 |
| Sales Unit | Each |
| UPC | 046135540226 |
Osram 64260 54022 Replacement Bulb Applications & Features
Applications
- Ophthalmic
Features
- Osram 64260 Halogen Bulb
- Single Ended Lamp
Osram 64260 54022 Replacement Lamp
Equipment
- Kowa ASL7A26
- Haag Streit 1080 Slit Lamp (Main)
- Kowa SL7
- Marco 1045
- Marco GII
- Marco GIV
- Marco GXX IV
- Marco 1080 Tonometer
- Nidek SL1600
- Nikon 79761
- Nikon CS2
- Nikon FS2
- Nikon FS3
- Nikon NS1
- YAG 1379
- Zeiss 3801-20-7040
- Zeiss 30SL (Main)
64260 Osram Halogen Lamp
- DANGER! The Osram 64260 replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
- Only use the Osram 64260 replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
- Do not use the 64260 Osram replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
- Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
- Do not touch the Osram 64260 bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
- Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the 64260 Osram replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
- Never touch the Osram 64260 lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
- Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
- Always turn off the electrical power before inserting, removing, or cleaning the replacement Osram 64260 lamp.
- Affix the 64260 Osram replacement lamp securely in the socket. Improper installation of the Osram 64260 replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
- Keep the temperature of the Osram 64260 lamp seal below 350C.
- Keep the temperature of the 64260 Osram replacement lamp wall above 250C.
- Keep the temperature of the Osram 64260 lamp wall below 800C.
- Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
- Osram 64260 replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
- Operate the Osram 64260 replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
- Use an external fuse when required.
- Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
