Osram 64501 - 54781

Lamp	64501
Description	115V 150W 2-Pin (GX6.35) Clear
Brand	Osram
MPN	54781
Previous MPN	54001
UPC	461355400110

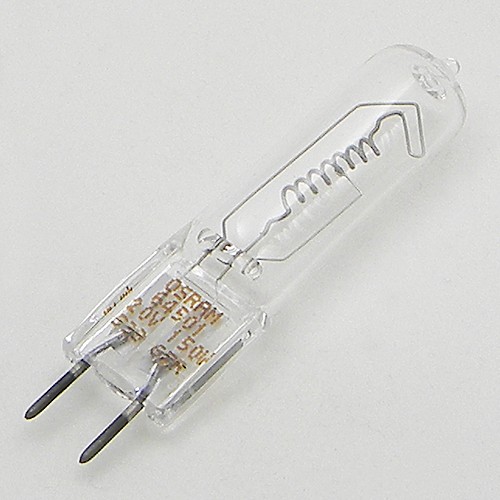

The 64501 Osram 54781 is a Halogen T4 115V 150W Lamp with a GX6.35 base.

Specifications for the 54781 Osram 64501 Replacement Lamp

GENERAL CHARACTERISTICS
Shape	T4
Lamp Base	GX6.35 (2-Pin)
Bulb Finish	Clear
Rated Life	25 hours
Light Center Length - LCL	1.17in (29.70mm)
Operating Position	Universal

PHOTOMETRIC CHARACTERISTICS
Initial Lumens	4500
Color Temperature	3400 K
Color Rendering Index (CRI)	100

ELECTRICAL CHARACTERISTICS
Watts	150 W
Volts	115 V

DIMENSIONS
Maximum Overall Length - MOL	2.15in (54.50mm)
Diameter	0.47in (12.00mm)

PRODUCT INFORMATION
Product Code	54781
Family Name	Osram Superphot
Description	64501
SKU Qty	1
Case Qty (Price Listed is Per Bulb)	25
Sales Unit	Each
UPC	461355400110

Osram 64501 54781 Replacement Bulb Applications & Features

Applications

Entertainment
Stage Studio
Night Club

Features

Osram 64501 Clear Halogen Bulb
Single Ended Lamp
Replacement for LC-150

64501 Osram Halogen Lamp

DANGER! The Osram 64501 replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
Only use the Osram 64501 replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
Do not use the 64501 Osram replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
Do not touch the Osram 64501 bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the 64501 Osram replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
Never touch the Osram 64501 lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
Always turn off the electrical power before inserting, removing, or cleaning the replacement Osram 64501 lamp.
Affix the 64501 Osram replacement lamp securely in the socket. Improper installation of the Osram 64501 replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
Keep the temperature of the Osram 64501 lamp seal below 350C.
Keep the temperature of the 64501 Osram replacement lamp wall above 250C.
Keep the temperature of the Osram 64501 lamp wall below 800C.
Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
Osram 64501 replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
Operate the Osram 64501 replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
Use an external fuse when required.
Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
