Osram BVW - 54692

Lamp	BVW
Description	120V 2000W Mog Pf (P40s) Clear
Brand	Osram
MPN	54692
UPC	4008321483300

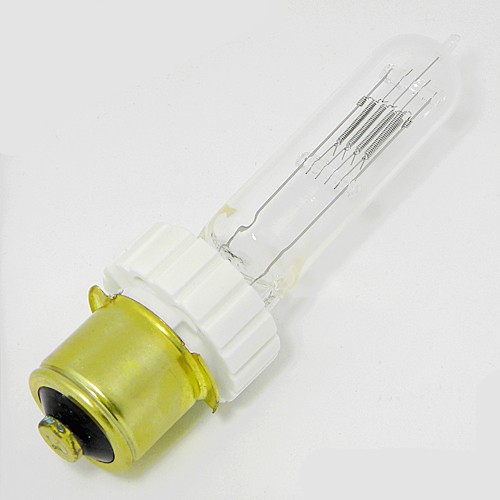

The BVW Osram 54692 is a Halogen T9.5 120V 2000W Lamp with a P40s base.

Specifications for the 54692 Osram BVW Replacement Lamp

GENERAL CHARACTERISTICS
Shape	T9.5
Lamp Base	P40s (Mogul Prefocus)
Filament	C-13
Bulb Finish	Clear
Rated Life	280 hours
Light Center Length - LCL	3.90in (100.00mm)
Operating Position	Universal

PHOTOMETRIC CHARACTERISTICS
Initial Lumens	59000
Color Temperature	3200 K

ELECTRICAL CHARACTERISTICS
Watts	2000 W
Volts	120 V

DIMENSIONS
Maximum Overall Length - MOL	7.93in (203.20mm)
Diameter	1.05in (27.00mm)

PRODUCT INFORMATION
Product Code	54692
Family Name	Osram Studio Theatre TV & Video
Description	BVW
LIF	CP53
SKU Qty	1
Case Qty (Price Listed is Per Bulb)	6
Sales Unit	Each
UPC	4008321483300

Osram BVW 54692 Replacement Bulb Applications & Features

Applications

Stage Studio
Theatre
TV
Video

Features

Osram BVW Halogen Bulb
Single Ended Lamp

BVW Osram Halogen Lamp

DANGER! The Osram BVW replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
Only use the Osram BVW replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
Do not use the BVW Osram replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
Do not touch the Osram BVW bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the BVW Osram replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
Never touch the Osram BVW lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
Always turn off the electrical power before inserting, removing, or cleaning the replacement Osram BVW lamp.
Affix the BVW Osram replacement lamp securely in the socket. Improper installation of the Osram BVW replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
Keep the temperature of the Osram BVW lamp seal below 350C.
Keep the temperature of the BVW Osram replacement lamp wall above 250C.
Keep the temperature of the Osram BVW lamp wall below 800C.
Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
Osram BVW replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
Operate the Osram BVW replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
Use an external fuse when required.
Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
