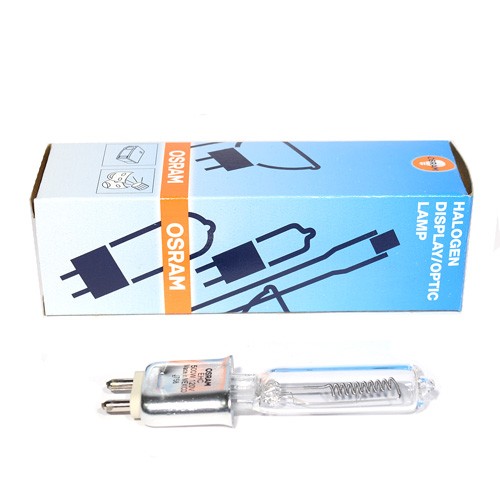

Osram EHC/EHB - 54506
The EHC/EHB Osram 54506 is a Halogen T4 120V 500W Lamp with a G9.5 base.
Specifications for the 54506 Osram EHC/EHB Replacement Lamp
| GENERAL CHARACTERISTICS | |
| Shape | T4 |
| Lamp Base | G9.5 (Medium 2-Pin) |
| Filament | CC-8 |
| Bulb Finish | Clear |
| Rated Life | 300 hours |
| Light Center Length - LCL | 2.37in (60.30mm) |
| Operating Position | Universal |
| PHOTOMETRIC CHARACTERISTICS | |
| Initial Lumens | 13000 |
| Color Temperature | 3200 K |
| Color Rendering Index (CRI) | 100 |
| ELECTRICAL CHARACTERISTICS | |
| Watts | 500 W |
| Volts | 120 V |
| DIMENSIONS | |
| Maximum Overall Length - MOL | 3.94in (100.10mm) |
| Diameter | 0.50in (12.70mm) |
| PRODUCT INFORMATION | |
| Product Code | 54506 |
| Family Name | Osram Studio Theatre TV & Video |
| Description | EHC/EHB |
| SKU Qty | 1 |
| Case Qty (Price Listed is Per Bulb) | 12 |
| Sales Unit | Each |
| UPC | 046135545061 |
Osram EHC/EHB 54506 Replacement Bulb Applications & Features
Applications
- Stage Studio
- Theatre
- TV
- Video
Features
- Osram EHC Tungsten Halogen Bulb
- Single Ended Lamp
- Metal Base
- Colortran 176-029
- Colortran 176-101
Osram EHC/EHB 54506 Replacement Lamp
Equipment
- Altman 3.5Q-MT-12 Ellipsoidal
EHC/EHB Osram Halogen Lamp
- DANGER! The Osram EHC/EHB replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
- Only use the Osram EHC/EHB replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
- Do not use the EHC/EHB Osram replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
- Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
- Do not touch the Osram EHC/EHB bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
- Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the EHC/EHB Osram replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
- Never touch the Osram EHC/EHB lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
- Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
- Always turn off the electrical power before inserting, removing, or cleaning the replacement Osram EHC/EHB lamp.
- Affix the EHC/EHB Osram replacement lamp securely in the socket. Improper installation of the Osram EHC/EHB replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
- Keep the temperature of the Osram EHC/EHB lamp seal below 350C.
- Keep the temperature of the EHC/EHB Osram replacement lamp wall above 250C.
- Keep the temperature of the Osram EHC/EHB lamp wall below 800C.
- Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
- Osram EHC/EHB replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
- Operate the Osram EHC/EHB replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
- Use an external fuse when required.
- Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
