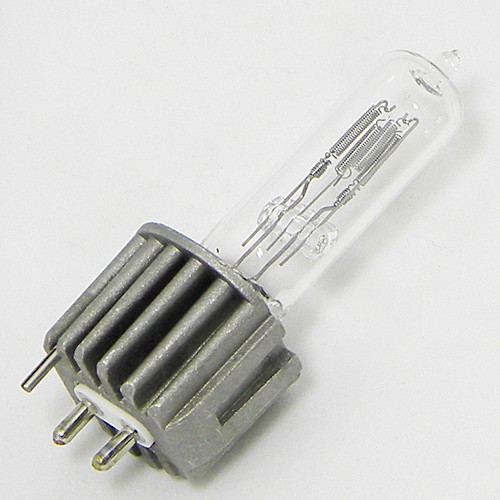

Osram HPL 550/77/X - 54604

Applications

• Theater
• TV
• Studio
• Professional Photography
• Entertainment and Architectural Lighting
• Source Four Series

Features

• Osram HPL 550/77X Halogen Bulb
• Metal Heat Sink Base
• Ultra Compact Filament
• HPL 550 77V Long Life Lamp
• HPL 550X Single Ended Lamp
• Halogen Display Optic Lamp

• DANGER! The HPL550/77X Osram replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
• Only use the Osram HPL 550/77/X replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Osram HPL550/77X Halogen lamp upon the event of a lamp burst.
• Do not use the UCF HPL550/77VX HPL 550/77/X Osram replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
• Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life of the Osram HPL550/77X.
• Do not touch the Osram HPL 550/77/X bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
• Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the HPL 550/77/X Osram replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
• Never touch the Osram HPL 550/77/X lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
• Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
• Always turn off the electrical power before inserting, removing, or cleaning the replacement Osram HPL 550/77/X lamp.
• Affix the HPL 550/77/X Osram replacement lamp securely in the socket. Improper installation of the Osram HPL 550/77/X replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
• Keep the temperature of the Osram HPL 550/77/X lamp seal below 350C.
• Keep the temperature of the HPL550/77X Osram replacement lamp wall above 250C.
• Keep the temperature of the Osram HPL 550/77/X UCF HPL550/77VX lamp wall below 800C.
• Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
• Osram HPL 550/77/X replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive the Osram HPL550/77X lamp over its rated voltage.
• Operate the Osram HPL 550/77/X UCF HPL550/77VX replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
• Use an external fuse when required.
• Do not allow the HPL550/77X lamp to directly expose another. This may lead to overheating and shortened lamp life of the HPL550/77X.
