SORAA SP30L-18-36D-830-03 - 00791
| Lamp | SP30L-18-36D-830-03 |
| Description | 18.5W 120V CRI 80 PAR30LN E26 3000K 36° |
| Brand | SORAA |
| MPN | 00791 |
| UPC | 849565007914 |
| Dimmable | Yes |

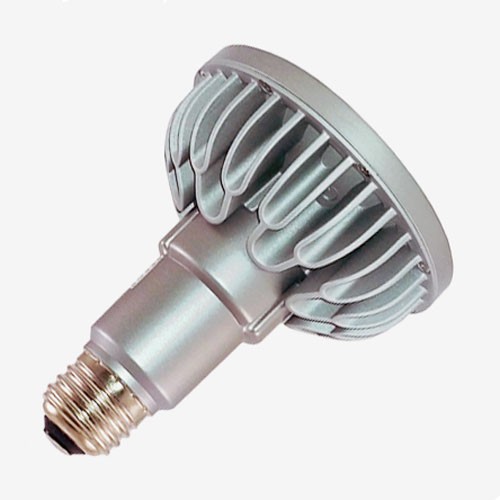

The Soraa SP30L-18-36D-830-03 is an 18.5W 120V 3000K PAR30LN LED lamp with a 36° beam spread and Medium Screw (E26) base.
Specifications for the 00791 SORAA SP30L-18-36D-830-03 Replacement Lamp
| GENERAL CHARACTERISTICS | |
| Shape | PAR30L |
| Lamp Base | E26 (Medium Screw) |
| Outside Finish | Silver |
| Rated Life | 35000 hours |
| PHOTOMETRIC CHARACTERISTICS | |
| Initial Lumens | 1280 |
| Beam Spread | 36° |
| CBCP (cd) | 3200 |
| Color Temperature | 3000 K |
| Color Rendering Index (CRI) | 80 |
| Equivalent Wattage | 100W PAR30 Halogen |
| ELECTRICAL CHARACTERISTICS | |
| Watts | 18.5 W |
| Volts | 120 V |
| DIMENSIONS | |
| Maximum Overall Length - MOL | 4.45in (113.00mm) |
| Diameter | 3.78in (96.00mm) |
| PRODUCT INFORMATION | |
| Product Code | 00791 |
| Family Name | Brilliant SP-30L Series |
| Description | SP30L-18-36D-830-03 |
| SKU Qty | 1 |
| Case Qty (Price Listed is Per Bulb) | 20 |
| Sales Unit | Each |
| UPC | 849565007914 |
SORAA SP30L-18-36D-830-03 00791 Replacement Bulb Applications & Features
Applications
- Downlights
- Track Lighting
- Indoor/Outdoor Applications
Features
- Exceptional smooth uniform beams
- Single light source
- Single crisp shadow
- Provides accurate color rendering
- 85% more energy efficient than standard halogen lamps, typical payback of one year or less.
- Rated lifetime of 35,000 hours.
- Three year warranty
- Certifications UL/CUL Class 2 and non-Class 2, FCC Title 47 Part 15B, RoHS, CE
- Thermally and geometrically compatible with standard fixtures
- Suitable for fully enclosed fixtures per UL 1993. Can be used with front glass cover
- Suitable for damp locations per UL
- Works with trailing edge and leading edge phase cut dimmers (see www.soraa.com/resources)
- Soraa lamps are designed to safely turn down in any thermal environment not conducive to minimum airflow or proper ventilation
- Safety Note - Although Soraa’s lamps operate at cooler temperatures than halogen lamps, it is recommended that gloves be worn when handling bare lamps that have been energized.
Dimmer Info for the SORAA SP30L-18-36D-830-03 00791 Replacement Lamp
Soraa Tested Dimmers
Soraa Tested Dimmers
| Manufacturer | Brand | Model | Edge Trigger | Dim (%) | Note |
|---|---|---|---|---|---|
| Cooper | DI06P | L | 3% | limited by dimmer travel | |
| ETC | CEM3 on D20, ELV10 CEM+ and Paradigm on D20 and ELV10 | L and T | 5% | smooth with CEM3 with any setting, longer fade time (~10sec) needed for smooth dim with CEM+ and paradigm | |
| Legrand | ADTP703TU | L | 3% | limited by dimmer travel | |
| Leviton | IPL06 | L | 2% | limited by dimmer travel | |
| Leviton | 6633-P | L | 1% | limited by dimmer travel | |
| Lightolier | ZP1000 | L | 7% | ||
| Lightolier | ZP600 | L | 1% | limited by dimmer travel | |
| Lutron | DIVA | DV-600P | L | 2% | limited by dimmer travel |
| Lutron | Skylark | S-600P | L | 2% | limited by dimmer travel |
| Lutron | Skylark | SLV-600P | L | 3% | limited by dimmer travel |
| Lutron | Skylark | CT-603PG | L | 3% | limited by dimmer travel |
| Lutron | Skylark | CTCL-153P | L | 2% | limited by dimmer travel |
| Lutron | Skylark | S-600 | L | 2% | limited by dimmer travel |
| Lutron | Skylark | S-603PG | L | 2% | limited by dimmer travel |
| Lutron | Skylark | SELV-300P | T | 5% | limited by dimmer travel |
| Lutron | Skylark | CTELV-303P | T | 2% | limited by dimmer travel |
| Lutron | Nova | NTLV-600 | L | 3% | limited by dimmer travel | Lutron | Nova | NTELV-300 | T | 4% | limited by dimmer travel |
| Lutron | Glyder | GL-600H | L | 3% | limited by dimmer travel |
| Lutron | Glyder | GL V48 | L | 2% | limited by dimmer travel |
| Lutron | Faedra | FAELV-500M | T | 4% | limited by dimmer travel |
| Lutron | Rotary | D-603PGH | L | 0% | limited by dimmer travel |
| Lutron | Ceana | CNLV-600P | L | 3% | limited by dimmer travel |
| Lutron | Toggler | 6B38 | L | 4% | limited by dimmer travel |
| Lutron | Toggler | TG-600PR | L | 4% | limited by dimmer travel |
| Lutron | Maestro | MACL-153M | L | 3% | limited by dimmer travel |
| Lutron | Maestro | MAELV-600 | T | 4% | limited by dimmer travel |
| Lutron | Maestro | MAW-600 | L | NC | only compatible with 2 or more lamps |
| Lutron | Maestro | MA-600 | L | NC | only compatible with 2 or more lamps |
| Lutron | Maestro | MALV-600 | L | NC |
NC = NOT COMPATIBLE
Note: Compatibility tests are conducted by SORAA only as guidance for the user.
All tests are conducted under bench conditions; results may differ from test results depending on conditions at the application site.
Results may vary due to variability in component choices and manufacturing processes by the transformer manufacturer
Note: Compatibility tests are conducted by SORAA only as guidance for the user.
All tests are conducted under bench conditions; results may differ from test results depending on conditions at the application site.
Results may vary due to variability in component choices and manufacturing processes by the transformer manufacturer
Literature for the SORAA SP30L-18-36D-830-03 00791 Replacement Bulb
 SORAA SP30L-18-36D-830-03 Datasheet |
Warranty information for the SORAA SP30L-18-36D-830-03 00791 Replacement Lamp
| SORAA Warranty Information |
