Sylvania CF26DD/E/827/ECO - 20684

Lamp CF26DD/E/827/ECO
Description 26W CRI 82 T4 4-Pin (G24q-3) 2700K Dulux D/E
Brand Sylvania
MPN 20684
UPC 046135206849

$3.70

Discontinued Product
18 In Stock

In Stock

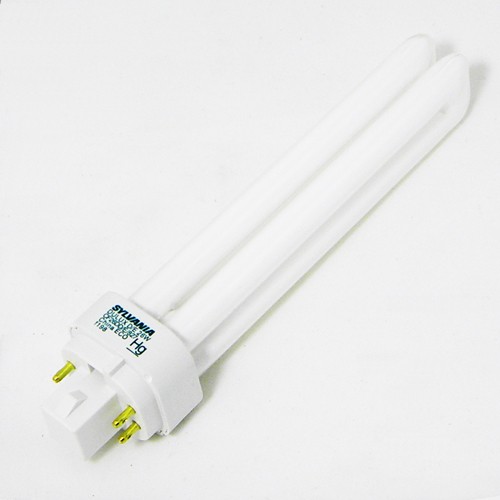

The CF26DD/E/827/ECO Sylvania 20684 is a 4-Pin Compact Fluorescent T4 26W Lamp with a G24q-3 base.
Specifications for the 20684 Sylvania CF26DD/E/827/ECO Replacement Lamp
GENERAL CHARACTERISTICS
Shape T4
Lamp Base G24q-3 (4-Pin)
Bulb Finish White
Rated Life 12000 hours
PHOTOMETRIC CHARACTERISTICS
Color Temperature 2700 K
Color Rendering Index (CRI) 82
ELECTRICAL CHARACTERISTICS
Watts 26 W
DIMENSIONS
Maximum Overall Length - MOL 6.50in (165.10mm)
Diameter 0.51in (13.00mm)
PRODUCT INFORMATION
Product Code 20684
Family Name Sylvania Dulux D/E
Description CF26DD/E/827/ECO
SKU Qty 1
Case Qty (Price Listed is Per Bulb) 50
Sales Unit Each
UPC 046135206849
Sylvania CF26DD/E/827/ECO 20684 Replacement Bulb Applications & Features

Features

  • Ecologic
  • Sylvania CF26DDE827ECO Compact Fluorescen Lamp
  • Dulux D/E 4-Pin Double Tube Bulb for Dimming or Electronic Ballast
  • EOL Protection
CF26DD/E/827/ECO Sylvania Compact Fluorescent Lamp
  • The CF26DD/E/827/ECO Sylvania fluorescent lamps operate at high surface temperatures that can cause serious physical injuries.
  • Turn power off and allow adequate time (approximately 10 minutes) for the Sylvania CF26DD/E/827/ECO lamp to cool before attempting replacement.
  • In order to avoid the risk of electrical shock, make sure the power to the fixture is turned off when replacing the CF26DD/E/827/ECO Sylvania.
  • The Sylvania CF26DD/E/827/ECO lamps are very fragile. Do not drop, crush, bend or shake them.
  • The CF26DD/E/827/ECO Sylvania fluorescent tubes may shatter with considerable force when broken.
  • To ensure that the Sylvania CF26DD/E/827/ECO lamps remain in the sockets for the duration of the operation, make sure that the fixture’s sockets are not worn prior to installation of the lamps.
  • If the CF26DD/E/827/ECO Sylvania lamps are installed in worn sockets, the lamps could fall out of the fixture during operation.
  • Never operate Sylvania CF26DD/E/827/ECO lamp above or below its rated current voltage.
  • Electrical connections should be clean and in good condition. Replace the CF26DD/E/827/ECO Sylvania lamp holders and sockets when needed.
  • Affix the Sylvania CF26DD/E/827/ECO lamp securely in the socket. Improper installations will cause electrical arcing, overheating and short life to the lamp and socket.
  • Do not look directly at the operating lamp for any period of time; this may cause serious eye injury.
  • CF26DD/E/827/ECO Sylvania fluorescent lamp use is not recommended in extreme weather conditions.
  • Excessive cold/warm temperatures dramatically affects the Sylvania CF26DD/E/827/ECO starting, lamp life and lumen maintenance.
