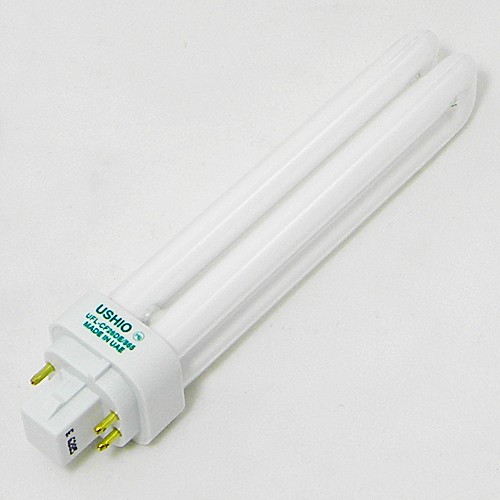

Ushio CF26DE/865 - 3000238

Lamp	CF26DE/865
Description	26W 105V CRI 82 T4 4-Pin (G24q-3) 6500K Ultra-DE
Brand	Ushio
MPN	3000238
UPC	048777260234

The CF26DE/865 Ushio 3000238 is a 4-Pin Compact Fluorescent 105V 26W Lamp with a G24q-3 base.

Specifications for the 3000238 Ushio CF26DE/865 Replacement Lamp

GENERAL CHARACTERISTICS
Shape	T4
Lamp Base	G24q-3 (4-Pin)
Bulb Finish	White
Rated Life	10000 hours
Operating Position	Universal

PHOTOMETRIC CHARACTERISTICS
Initial Lumens	1540
Color Temperature	6500 K
Color Rendering Index (CRI)	82

ELECTRICAL CHARACTERISTICS
Watts	26 W
Volts	105 V

DIMENSIONS
Maximum Overall Length - MOL	6.50in (165.00mm)

PRODUCT INFORMATION
Product Code	3000238
Family Name	Ushio Ultra-DE Series
Description	CF26DE/865
SKU Qty	1
Case Qty (Price Listed is Per Bulb)	50
Sales Unit	Each
UPC	048777260234

Ushio CF26DE/865 3000238 Replacement Bulb Applications & Features

Applications

Facilities
Retail Display
Hospitality
Office
Restaurant
Warehouse

Features

Ushio UFL-CF26DE/865 Compact Fluorescent Lamp
Ultra-DE Double Tube Dimmable Bulb for Electronic Ballasts
4-Pin Base
Energy Saving
26W D/6500K G24q-3

CF26DE/865 Ushio Compact Fluorescent Lamp

The CF26DE/865 Ushio fluorescent lamps operate at high surface temperatures that can cause serious physical injuries.
Turn power off and allow adequate time (approximately 10 minutes) for the Ushio CF26DE/865 lamp to cool before attempting replacement.
In order to avoid the risk of electrical shock, make sure the power to the fixture is turned off when replacing the CF26DE/865 Ushio.
The Ushio CF26DE/865 lamps are very fragile. Do not drop, crush, bend or shake them.
The CF26DE/865 Ushio fluorescent tubes may shatter with considerable force when broken.
To ensure that the Ushio CF26DE/865 lamps remain in the sockets for the duration of the operation, make sure that the fixture’s sockets are not worn prior to installation of the lamps.
If the CF26DE/865 Ushio lamps are installed in worn sockets, the lamps could fall out of the fixture during operation.
Never operate Ushio CF26DE/865 lamp above or below its rated current voltage.
Electrical connections should be clean and in good condition. Replace the CF26DE/865 Ushio lamp holders and sockets when needed.
Affix the Ushio CF26DE/865 lamp securely in the socket. Improper installations will cause electrical arcing, overheating and short life to the lamp and socket.
Do not look directly at the operating lamp for any period of time; this may cause serious eye injury.
CF26DE/865 Ushio fluorescent lamp use is not recommended in extreme weather conditions.
Excessive cold/warm temperatures dramatically affects the Ushio CF26DE/865 starting, lamp life and lumen maintenance.
