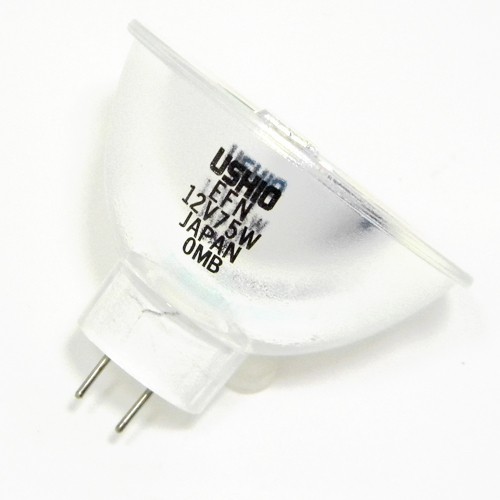

Ushio EFN - 1000270

Applications

• Dental
• Fiber Optic
• Microscope
• Projection

Features

• Ushio EFN (JCR12V-75W) Halogen Lamp
• Low Voltage MR16 Bulb
• Dichroic Coated Reflector
• Focused Beam for Optical Applications
• Working Distance 32mm
• Only for Use in Approved Enclosed Halogen Fixtures

Equipment

• Zeiss 3800-79-9030 Operation Micoscope 99 Power Arm
• Welch Allyn 04200 Exam Light II

• DANGER! The Ushio EFN JCR12V-75W replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
• Only use the Ushio EFN replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
• Do not use the JCR12V-75W EFN Ushio replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
• Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
• Do not touch the Ushio EFN bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
• Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the EFN Ushio replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
• Never touch the Ushio EFN lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
• Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
• Always turn off the electrical power before inserting, removing, or cleaning the replacement Ushio EFN lamp.
• Affix the EFN Ushio replacement lamp securely in the socket. Improper installation of the Ushio EFN replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
• Keep the temperature of the Ushio EFN lamp seal below 350C.
• Keep the temperature of the EFN Ushio replacement lamp wall above 250C.
• Keep the temperature of the Ushio EFN JCR12V-75W lamp wall below 800C.
• Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
• Ushio EFN replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
• Operate the Ushio EFN JCR12V-75W replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
• Use an external fuse when required.
• Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
