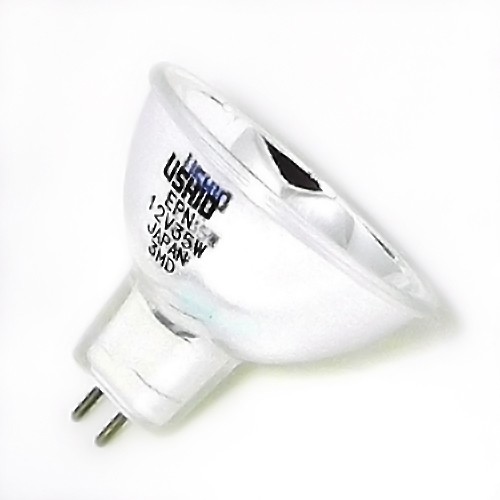

Ushio EPN - 1000344

Lamp	EPN (JCR12V-35W)
Description	12V 35W 2-Pin (GX5.3) MR16
Brand	Ushio
MPN	1000344
UPC	048777122549

The EPN Ushio 1000344 is a Halogen MR16 12V 35W Lamp with a GX5.3 base.

Specifications for the 1000344 Ushio EPN Replacement Lamp

GENERAL CHARACTERISTICS
Shape	MR16
Lamp Base	GX5.3 (2-Pin, Round Pins)
Filament	C-6
Bulb Finish	Clear
Rated Life	50 hours
Operating Position	BD/Hor

PHOTOMETRIC CHARACTERISTICS
Color Temperature	3300 K

ELECTRICAL CHARACTERISTICS
Watts	35 W
Volts	12 V

DIMENSIONS
Maximum Overall Length - MOL	1.75in (44.50mm)
Diameter	2.00in (50.80mm)

PRODUCT INFORMATION
Product Code	1000344
Family Name	Ushio JCR Series MR-16 Tungsten Halogen Lamps
Description	EPN
Ordering Code	JCR12V-35W
SKU Qty	1
Case Qty (Price Listed is Per Bulb)	10
Sales Unit	Each
UPC	048777122549

Ushio EPN 1000344 Replacement Bulb Applications & Features

Applications

Projection

Features

Ushio EPN (JCR12V-35W) Halogen Bulb
MR16 Lamp
Dichroic Coated Reflector
Focused Beam for Optical Applications
Only for Use in Approved Enclosed Halogen Fixtures

EPN Ushio Halogen Lamp

DANGER! The Ushio EPN JCR12V-35W replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
Only use the Ushio EPN replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
Do not use the JCR12V-35W EPN Ushio replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
Do not touch the Ushio EPN bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the EPN Ushio replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
Never touch the Ushio EPN lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
Always turn off the electrical power before inserting, removing, or cleaning the replacement Ushio EPN lamp.
Affix the EPN Ushio replacement lamp securely in the socket. Improper installation of the Ushio EPN replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
Keep the temperature of the Ushio EPN lamp seal below 350C.
Keep the temperature of the EPN Ushio replacement lamp wall above 250C.
Keep the temperature of the Ushio EPN JCR12V-35W lamp wall below 800C.
Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
Ushio EPN replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
Operate the Ushio EPN JCR12V-35W replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
Use an external fuse when required.
Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
