Ushio ESB/FHE - 1000532

Lamp	ESB/FHE (JC6V-20W/G4 C6)
Description	6V 20W 2-Pin (G4) C6 Clear
Brand	Ushio
MPN	1000532
UPC	048777134726

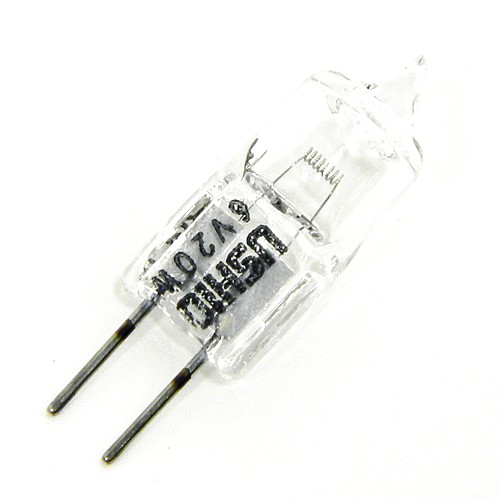

The ESB/FHE Ushio 1000532 is a Halogen T3 6V 20W Lamp with a G4 base.

Specifications for the 1000532 Ushio ESB/FHE Replacement Lamp

GENERAL CHARACTERISTICS
Shape	T3
Lamp Base	G4 (Miniature 2-Pin)
Filament	C-6
Bulb Finish	Clear
Rated Life	100 hours
Light Center Length - LCL	0.77in (19.50mm)
Operating Position	Universal

PHOTOMETRIC CHARACTERISTICS
Initial Lumens	450
Color Temperature	3200 K

ELECTRICAL CHARACTERISTICS
Watts	20 W
Volts	6 V

DIMENSIONS
Maximum Overall Length - MOL	1.18in (30.00mm)
Diameter	0.35in (9.00mm)

PRODUCT INFORMATION
Product Code	1000532
Family Name	Ushio JC Series Halogen Low Voltage Bi-Pin Lamps
Description	ESB/FHE
Ordering Code	JC6V-20W/G4 C6
LIF	M30
SKU Qty	1
Case Qty (Price Listed is Per Bulb)	10
Sales Unit	Each
UPC	048777134726

Ushio ESB/FHE 1000532 Replacement Bulb Applications & Features

Applications

Projector
Medical Lamp

Features

Ushio ESB/FHE (JC6V-20W/G4 C6) Halogen Bulb
FHE/ESB
Single Ended Lamp
Only for Use in Approved Enclosed Halogen Fixtures

Ushio ESB/FHE 1000532 Replacement Lamp

Equipment

AO-Reichert 1120 Microscope
Swift M10002D Microscope
AO-Reichert 11143
Heine Y-96.14.103/ESB Examination Light
Leica 500-245 Microscope
Leica Laborlux 12
Leica Dialux 20
Leica Vario Orthomat
Leica SM-LUX HL
Leica Laborlux 12 HL ME
Marco CP2 Acuity (Eye Chart) Projector
Nikon 89500 Acuity (Eye Chart) Projector
Olympus 8-C405 Microscope
Olympus VM-ILA-2
Olympus SZH-ILLB
Olympus SZH-IILK
Olympus BHTU
Olympus BHT
Olympus CHS
Olympus SZH-ILLC
Olympus CK-2
Shin-Nippon SL-40 Slit Lamp
Swift MA780 Microscope
Swift Y3H Microscope
Swift M10005D Microscope
Swift M10004D Microscope
Swift Swiftmaster 1 Microscope
Wild/Leitz 362-658 Microscope
Wild/Leitz ME Microscope
Wild/Leitz M7A Microscope
Wild/Leitz M8 Microscope
Zeiss 3800-20-1740D Microscope

ESB/FHE Ushio Halogen Lamp

DANGER! The Ushio ESB/FHE JC6V-20W/G4 C6 replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
Only use the Ushio ESB/FHE replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
Do not use the JC6V-20W/G4 C6 ESB/FHE Ushio replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
Do not touch the Ushio ESB/FHE bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the ESB/FHE Ushio replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
Never touch the Ushio ESB/FHE lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
Always turn off the electrical power before inserting, removing, or cleaning the replacement Ushio ESB/FHE lamp.
Affix the ESB/FHE Ushio replacement lamp securely in the socket. Improper installation of the Ushio ESB/FHE replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
Keep the temperature of the Ushio ESB/FHE lamp seal below 350C.
Keep the temperature of the ESB/FHE Ushio replacement lamp wall above 250C.
Keep the temperature of the Ushio ESB/FHE JC6V-20W/G4 C6 lamp wall below 800C.
Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
Ushio ESB/FHE replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
Operate the Ushio ESB/FHE JC6V-20W/G4 C6 replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
Use an external fuse when required.
Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
