Ushio EYH/FKT - 1000453

EYH/FKT
Ushio
Lamp EYH/FKT (JCD120V-250WB)
Description 120V 250W Mini 2-Pin (G5.3) Clear
Brand Ushio
MPN 1000453
UPC 048777129548

$26.92

In Stock

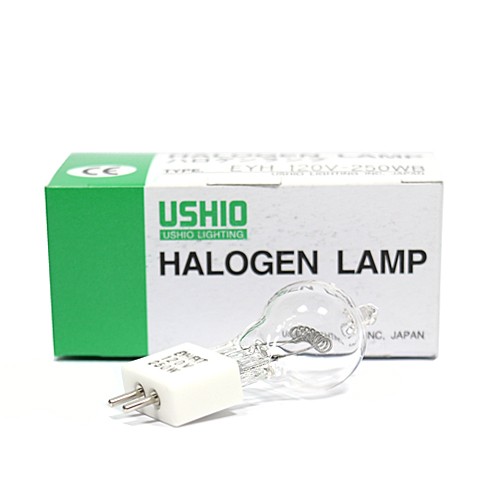

The EYH/FKT Ushio 1000453 is a Halogen G6 120V 250W Lamp with a G5.3 base.
Specifications for the 1000453 Ushio EYH/FKT Replacement Lamp
GENERAL CHARACTERISTICS
Shape G6
Lamp Base G5.3 (Miniature 2-Pin)
Filament CC-6
Bulb Finish Clear
Rated Life 150 hours
Light Center Length - LCL 1.44in (36.50mm)
Operating Position BD/Hor
PHOTOMETRIC CHARACTERISTICS
Initial Lumens 6050
Color Temperature 3050 K
ELECTRICAL CHARACTERISTICS
Watts 250 W
Volts 120 V
DIMENSIONS
Maximum Overall Length - MOL 2.50in (63.50mm)
Diameter 0.87in (22.00mm)
PRODUCT INFORMATION
Product Code 1000453
Family Name Ushio JCD Series Halogen Bi-Pin SSTV & AV Lamps
Description EYH/FKT
Ordering Code JCD120V-250WB
SKU Qty 1
Case Qty (Price Listed is Per Bulb) 10
Sales Unit Each
UPC 048777129548
Ushio EYH/FKT 1000453 Replacement Bulb Applications & Features

Applications

  • Overhead Projection
  • Stage Studio


Features

  • Ushio EYH-FKT Halogen Bulb
  • Single Ended Lamp
  • Only for Use in Approved Halogen Fixtures
EYH/FKT Ushio Halogen Lamp

  • DANGER! The Ushio EYH/FKT JCD120V-250WB replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
  • Only use the Ushio EYH/FKT replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
  • Do not use the JCD120V-250WB EYH/FKT Ushio replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
  • Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
  • Do not touch the Ushio EYH/FKT bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
  • Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the EYH/FKT Ushio replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
  • Never touch the Ushio EYH/FKT lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
  • Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
  • Always turn off the electrical power before inserting, removing, or cleaning the replacement Ushio EYH/FKT lamp.
  • Affix the EYH/FKT Ushio replacement lamp securely in the socket. Improper installation of the Ushio EYH/FKT replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
  • Keep the temperature of the Ushio EYH/FKT lamp seal below 350C.
  • Keep the temperature of the EYH/FKT Ushio replacement lamp wall above 250C.
  • Keep the temperature of the Ushio EYH/FKT JCD120V-250WB lamp wall below 800C.
  • Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
  • Ushio EYH/FKT replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
  • Operate the Ushio EYH/FKT JCD120V-250WB replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
  • Use an external fuse when required.
  • Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
