Ushio EYV (JCV130V-500WGSF) - 1000464

Ushio
Lamp EYV (JCV130V-500WGSF)
Description 130V 500W Mini Can (E11) Frost
Brand Ushio
MPN 1000464
UPC 048777130247

$36.92

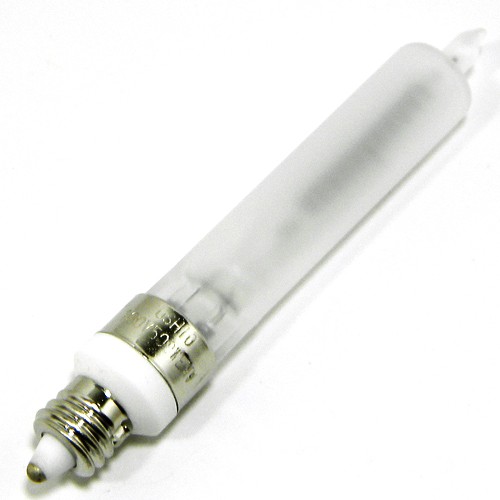

The EYV (JCV130V-500WGSF) Ushio 1000464 is a Halogen T4 130V 500W Lamp with an E11 base.
Specifications for the 1000464 Ushio EYV (JCV130V-500WGSF) Replacement Lamp
GENERAL CHARACTERISTICS
Shape T4
Lamp Base E11 (Mini Candelabra Screw)
Filament CC-8
Bulb Finish Frost
Rated Life 2000 hours
Light Center Length - LCL 2.01in (51.00mm)
Operating Position Universal
PHOTOMETRIC CHARACTERISTICS
Initial Lumens 9500
Color Temperature 3000 K
ELECTRICAL CHARACTERISTICS
Watts 500 W
Volts 130 V
DIMENSIONS
Maximum Overall Length - MOL 3.75in (92.00mm)
Diameter 0.51in (13.00mm)
PRODUCT INFORMATION
Product Code 1000464
Family Name Ushio JCV Series Single Ended Screw Base Tungsten Halogen Lamps
Description EYV (JCV130V-500WGSF)
SKU Qty 1
Case Qty (Price Listed is Per Bulb) 10
Sales Unit Each
UPC 048777130247
Ushio EYV (JCV130V-500WGSF) 1000464 Replacement Bulb Applications & Features

Applications

  • Stage Studio


Features

  • Ushio EYV (JCV130V-500WGSF) Frosted Halogen Bulb
  • Single Ended Lamp
  • Only for Use in Approved Enclosed Halogen Fixtures
EYV (JCV130V-500WGSF) Ushio Halogen Lamp

  • DANGER! The Ushio EYV (JCV130V-500WGSF) replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
  • Only use the Ushio EYV (JCV130V-500WGSF) replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
  • Do not use the EYV (JCV130V-500WGSF) Ushio replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
  • Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
  • Do not touch the Ushio EYV (JCV130V-500WGSF) bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
  • Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the EYV (JCV130V-500WGSF) Ushio replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
  • Never touch the Ushio EYV (JCV130V-500WGSF) lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
  • Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
  • Always turn off the electrical power before inserting, removing, or cleaning the replacement Ushio EYV (JCV130V-500WGSF) lamp.
  • Affix the EYV (JCV130V-500WGSF) Ushio replacement lamp securely in the socket. Improper installation of the Ushio EYV (JCV130V-500WGSF) replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
  • Keep the temperature of the Ushio EYV (JCV130V-500WGSF) lamp seal below 350C.
  • Keep the temperature of the EYV (JCV130V-500WGSF) Ushio replacement lamp wall above 250C.
  • Keep the temperature of the Ushio EYV (JCV130V-500WGSF) lamp wall below 800C.
  • Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
  • Ushio EYV (JCV130V-500WGSF) replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
  • Operate the Ushio EYV (JCV130V-500WGSF) replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
  • Use an external fuse when required.
  • Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
