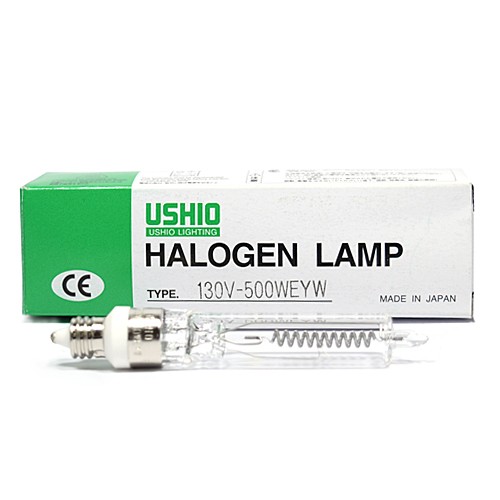

Ushio EYW (JCV130V-500WGS) - 1000465

Lamp	EYW (JCV130V-500WGS)
Description	130V 500W Mini Can (E11) Clear
Brand	Ushio
MPN	1000465
UPC	048777130315

The EYW (JCV130V-500WGS) Ushio 1000465 is a Halogen T4 130V 500W Lamp with an E11 base.

Specifications for the 1000465 Ushio EYW (JCV130V-500WGS) Replacement Lamp

GENERAL CHARACTERISTICS
Shape	T4
Lamp Base	E11 (Mini Candelabra Screw)
Filament	CC-8
Bulb Finish	Clear
Rated Life	2000 hours
Light Center Length - LCL	2.01in (51.00mm)
Operating Position	Universal

PHOTOMETRIC CHARACTERISTICS
Initial Lumens	10000
Color Temperature	3000 K

ELECTRICAL CHARACTERISTICS
Watts	500 W
Volts	130 V

DIMENSIONS
Maximum Overall Length - MOL	3.62in (92.00mm)
Diameter	0.51in (13.00mm)

PRODUCT INFORMATION
Product Code	1000465
Family Name	Ushio JCV Series Single Ended Screw Base Tungsten Halogen Lamps
Description	EYW (JCV130V-500WGS)
SKU Qty	1
Case Qty (Price Listed is Per Bulb)	10
Sales Unit	Each
UPC	048777130315

Ushio EYW (JCV130V-500WGS) 1000465 Replacement Bulb Applications & Features

Applications

Stage Studio

Features

Ushio EYW (JCV130V-500WGS) Halogen Bulb
Single Ended Lamp
Only for Use in Approved Enclosed Halogen Fixtures

EYW (JCV130V-500WGS) Ushio Halogen Lamp

DANGER! The Ushio EYW (JCV130V-500WGS) replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
Only use the Ushio EYW (JCV130V-500WGS) replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
Do not use the EYW (JCV130V-500WGS) Ushio replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
Do not touch the Ushio EYW (JCV130V-500WGS) bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the EYW (JCV130V-500WGS) Ushio replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
Never touch the Ushio EYW (JCV130V-500WGS) lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
Always turn off the electrical power before inserting, removing, or cleaning the replacement Ushio EYW (JCV130V-500WGS) lamp.
Affix the EYW (JCV130V-500WGS) Ushio replacement lamp securely in the socket. Improper installation of the Ushio EYW (JCV130V-500WGS) replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
Keep the temperature of the Ushio EYW (JCV130V-500WGS) lamp seal below 350C.
Keep the temperature of the EYW (JCV130V-500WGS) Ushio replacement lamp wall above 250C.
Keep the temperature of the Ushio EYW (JCV130V-500WGS) lamp wall below 800C.
Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
Ushio EYW (JCV130V-500WGS) replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
Operate the Ushio EYW (JCV130V-500WGS) replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
Use an external fuse when required.
Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
