Ushio FBY - 1000483

Lamp	FBY (JPD120V-1000WC5F)
Description	120V 1000W RSC (R7s) T5 Frost
Brand	Ushio
MPN	1000483
UPC	048777131367

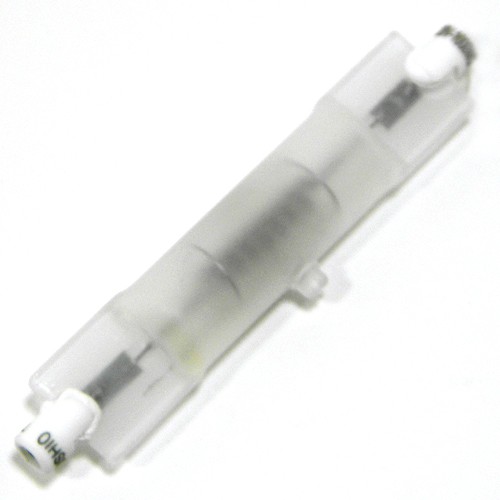

The FBY Ushio 1000483 is a Halogen T5 120V 1000W Lamp with a R7s base.

Specifications for the 1000483 Ushio FBY Replacement Lamp

GENERAL CHARACTERISTICS
Shape	T5
Lamp Base	R7s (Recessed Single Contact)
Filament	CC-8
Bulb Finish	Frost
Rated Life	150 hours
Operating Position	Universal

PHOTOMETRIC CHARACTERISTICS
Initial Lumens	26000
Color Temperature	3200 K

ELECTRICAL CHARACTERISTICS
Watts	1000 W
Volts	120 V

DIMENSIONS
Maximum Overall Length - MOL	3.74in (95.00mm)
Diameter	0.71in (18.00mm)

PRODUCT INFORMATION
Product Code	1000483
Family Name	Ushio JPD Series Double Ended Quartz Halogen Lamps
Description	FBY
Ordering Code	JPD120V-1000WC5F
SKU Qty	1
Case Qty (Price Listed is Per Bulb)	10
Sales Unit	Each
UPC	048777131367

Ushio FBY 1000483 Replacement Bulb Applications & Features

Applications

Projection

Features

Ushio FBY (JPD120V-1000WC5F) Frosted Halogen Bulb
Double Ended Lamp
Colortran 176-012
Only for Use in Approved Enclosed Halogen Fixtures

FBY Ushio Halogen Lamp

DANGER! The Ushio FBY JPD120V-1000WC5F replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
Only use the Ushio FBY replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
Do not use the JPD120V-1000WC5F FBY Ushio replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
Do not touch the Ushio FBY bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the FBY Ushio replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
Never touch the Ushio FBY lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
Always turn off the electrical power before inserting, removing, or cleaning the replacement Ushio FBY lamp.
Affix the FBY Ushio replacement lamp securely in the socket. Improper installation of the Ushio FBY replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
Keep the temperature of the Ushio FBY lamp seal below 350C.
Keep the temperature of the FBY Ushio replacement lamp wall above 250C.
Keep the temperature of the Ushio FBY JPD120V-1000WC5F lamp wall below 800C.
Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
Ushio FBY replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
Operate the Ushio FBY JPD120V-1000WC5F replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
Use an external fuse when required.
Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
