Ushio FFT - 1000523

FFT
Ushio
Lamp FFT (JP120V-1000WC2)
Description 120V 1000W RSC (R7s) Clear
Brand Ushio
MPN 1000523
UPC 048777134092

$22.64

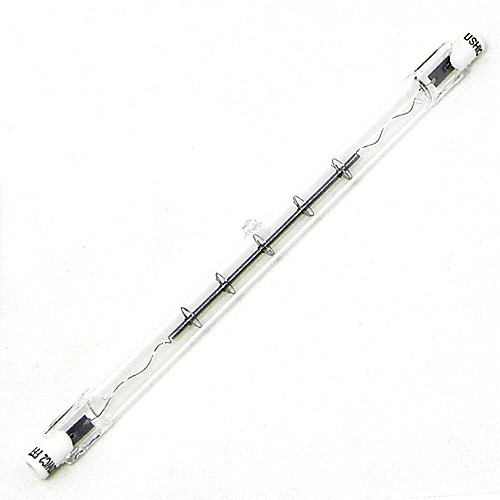

The FFT Ushio 1000523 is a Halogen T3 120V 1000W Lamp with a R7s base.
Specifications for the 1000523 Ushio FFT Replacement Lamp
GENERAL CHARACTERISTICS
Shape T3
Lamp Base R7s (Recessed Single Contact)
Filament C-8
Bulb Finish Clear
Rated Life 300 hours
Operating Position Horiz ±4°
PHOTOMETRIC CHARACTERISTICS
Initial Lumens 27000
Color Temperature 3200 K
ELECTRICAL CHARACTERISTICS
Watts 1000 W
Volts 120 V
DIMENSIONS
Maximum Overall Length - MOL 6.59in (167.40mm)
Diameter 0.47in (12.00mm)
PRODUCT INFORMATION
Product Code 1000523
Family Name Ushio JP Series Double Ended Quartz Halogen Lamps
Description FFT
Ordering Code JP120V-1000WC2
SKU Qty 1
Case Qty (Price Listed is Per Bulb) 100
Sales Unit Each
UPC 048777134092
Ushio FFT 1000523 Replacement Bulb Applications & Features

Applications

  • Stage Studio


Features

  • Ushio FFT (JP120V-1000WC2) Halogen Bulb
  • Double Ended Lamp
  • Colortran 176-182
  • Only for Use in Approved Enclosed Halogen Fixtures
Ushio FFT 1000523 Replacement Lamp

Equipment

  • Altman FC-1 Cyclorama Light
  • Altman EC-1 Cyclorama Light
  • Altman Sky-Cyc-01 Cyclorama Light
  • Mole-Richardson Molequartz Super-Broad
FFT Ushio Halogen Lamp

  • DANGER! The Ushio FFT JP120V-1000WC2 replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
  • Only use the Ushio FFT replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
  • Do not use the JP120V-1000WC2 FFT Ushio replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
  • Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
  • Do not touch the Ushio FFT bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
  • Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the FFT Ushio replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
  • Never touch the Ushio FFT lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
  • Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
  • Always turn off the electrical power before inserting, removing, or cleaning the replacement Ushio FFT lamp.
  • Affix the FFT Ushio replacement lamp securely in the socket. Improper installation of the Ushio FFT replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
  • Keep the temperature of the Ushio FFT lamp seal below 350C.
  • Keep the temperature of the FFT Ushio replacement lamp wall above 250C.
  • Keep the temperature of the Ushio FFT JP120V-1000WC2 lamp wall below 800C.
  • Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
  • Ushio FFT replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
  • Operate the Ushio FFT JP120V-1000WC2 replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
  • Use an external fuse when required.
  • Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
