Ushio FRG - 1000603

FRG
Ushio
Lamp FRG (JCS120V-500WC1)
Description 120V 500W 2-Pin Pf (GY9.5) Clear
Brand Ushio
MPN 1000603
UPC 048777139417

$18.59

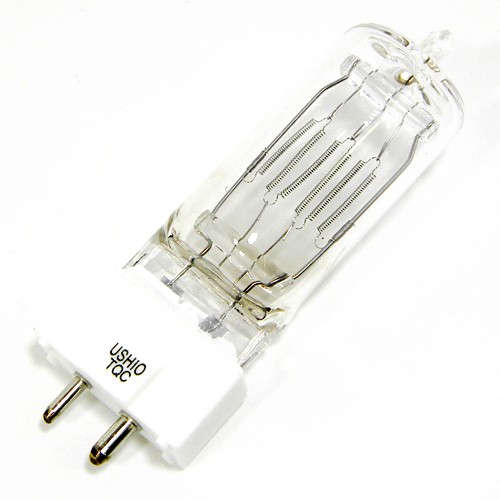

The FRG Ushio 1000603 is a Halogen T8 120V 500W Lamp with a GY9.5 base.
Specifications for the 1000603 Ushio FRG Replacement Lamp
GENERAL CHARACTERISTICS
Shape T8
Lamp Base GY9.5 (2-Pin Prefocus)
Filament C-13D
Bulb Finish Clear
Rated Life 150 hours
Light Center Length - LCL 1.83in (46.50mm)
Operating Position Universal
PHOTOMETRIC CHARACTERISTICS
Initial Lumens 13000
Color Temperature 3200 K
ELECTRICAL CHARACTERISTICS
Watts 500 W
Volts 120 V
DIMENSIONS
Maximum Overall Length - MOL 3.56in (90.40mm)
Diameter 0.91in (23.00mm)
PRODUCT INFORMATION
Product Code 1000603
Family Name Ushio JCS Series Halogen Bi-Pin Halogen Lamps
Description FRG
Ordering Code JCS120V-500WC1
LIF CP82
SKU Qty 1
Case Qty (Price Listed is Per Bulb) 10
Sales Unit Each
UPC 048777139417
Ushio FRG 1000603 Replacement Bulb Applications & Features

Applications

  • Stage Studio
  • Theatre
  • TV
  • Video


Features

  • Ushio FRG (JCS120V-500WC1) Halogen Bulb
  • Single Ended Lamp
  • Proximity Reflector
  • Only for Use in Approved Enclosed Halogen Fixtures
Ushio FRG 1000603 Replacement Lamp

Equipment

  • Mole-Richardson Molequartz Tweenie II Solarspot
FRG Ushio Halogen Lamp

  • DANGER! The Ushio FRG JCS120V-500WC1 replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
  • Only use the Ushio FRG replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
  • Do not use the JCS120V-500WC1 FRG Ushio replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
  • Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
  • Do not touch the Ushio FRG bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
  • Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the FRG Ushio replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
  • Never touch the Ushio FRG lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
  • Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
  • Always turn off the electrical power before inserting, removing, or cleaning the replacement Ushio FRG lamp.
  • Affix the FRG Ushio replacement lamp securely in the socket. Improper installation of the Ushio FRG replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
  • Keep the temperature of the Ushio FRG lamp seal below 350C.
  • Keep the temperature of the FRG Ushio replacement lamp wall above 250C.
  • Keep the temperature of the Ushio FRG JCS120V-500WC1 lamp wall below 800C.
  • Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
  • Ushio FRG replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
  • Operate the Ushio FRG JCS120V-500WC1 replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
  • Use an external fuse when required.
  • Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
