Ushio GDA - 1000652

Lamp	GDA (JP120V-500WC2)
Description	120V 500W RSC (R7s) Clear
Brand	Ushio
MPN	1000652
UPC	048777142776

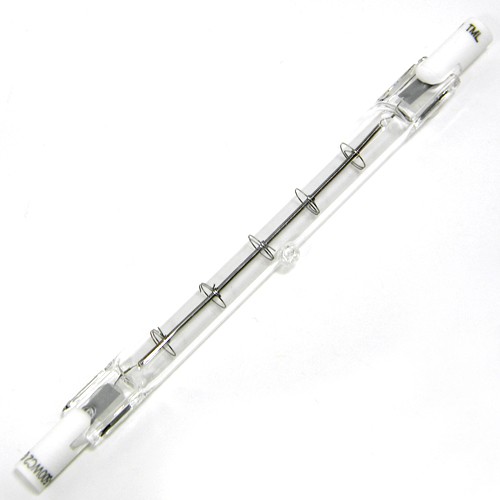

The GDA Ushio 1000652 is a Halogen T3 120V 500W Lamp with a R7s base.

Specifications for the 1000652 Ushio GDA Replacement Lamp

GENERAL CHARACTERISTICS
Shape	T3
Lamp Base	R7s (Recessed Single Contact)
Filament	C-8
Bulb Finish	Clear
Rated Life	100 hours
Operating Position	Horiz ±4°

PHOTOMETRIC CHARACTERISTICS
Initial Lumens	11000
Color Temperature	3100 K

ELECTRICAL CHARACTERISTICS
Watts	500 W
Volts	120 V

DIMENSIONS
Maximum Overall Length - MOL	5.32in (135.20mm)
Diameter	0.47in (12.00mm)

PRODUCT INFORMATION
Product Code	1000652
Family Name	Ushio JP Series Double Ended Quartz Halogen Lamps
Description	GDA
Ordering Code	JP120V-500WC2
SKU Qty	1
Case Qty (Price Listed is Per Bulb)	100
Sales Unit	Each
UPC	048777142776

Ushio GDA 1000652 Replacement Bulb Applications & Features

Applications

Stage Studio

Features

Ushio GDA (JP120V-500WC2) Halogen Bulb
Double Ended Lamp
Only for Use in Approved Enclosed Halogen Fixtures

GDA Ushio Halogen Lamp

DANGER! The Ushio GDA JP120V-500WC2 replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
Only use the Ushio GDA replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
Do not use the JP120V-500WC2 GDA Ushio replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
Do not touch the Ushio GDA bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the GDA Ushio replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
Never touch the Ushio GDA lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
Always turn off the electrical power before inserting, removing, or cleaning the replacement Ushio GDA lamp.
Affix the GDA Ushio replacement lamp securely in the socket. Improper installation of the Ushio GDA replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
Keep the temperature of the Ushio GDA lamp seal below 350C.
Keep the temperature of the GDA Ushio replacement lamp wall above 250C.
Keep the temperature of the Ushio GDA JP120V-500WC2 lamp wall below 800C.
Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
Ushio GDA replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
Operate the Ushio GDA JP120V-500WC2 replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
Use an external fuse when required.
Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
