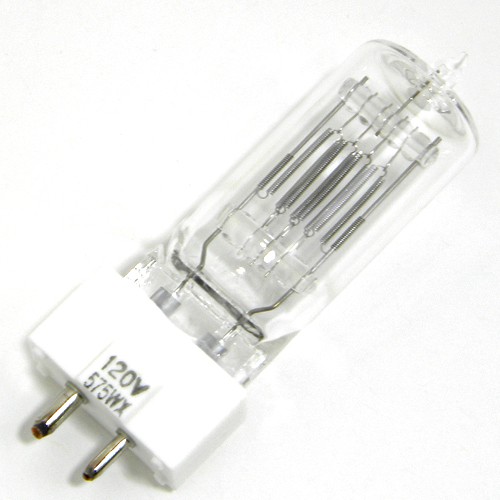

Ushio JCS120V-575WX - 1003327

Applications

• Stage Studio

Features

• Ushio JCS120V575WX Halogen Bulb
• Single Ended Lamp
• Biplane Filament Design
• Medium Wattage Alternative to FKW 300W and FRK 650W
• Allows 2 Instruments to be Used on a 1200 Watt Capacity Dimming Channel While Maximizing Light Output

Equipment

• Selecon Performance Lighting Acclaim Fresnel

• DANGER! The Ushio JCS120V-575WX replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
• Only use the Ushio JCS120V-575WX replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
• Do not use the JCS120V-575WX Ushio replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
• Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
• Do not touch the Ushio JCS120V-575WX bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
• Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the JCS120V-575WX Ushio replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
• Never touch the Ushio JCS120V-575WX lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
• Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
• Always turn off the electrical power before inserting, removing, or cleaning the replacement Ushio JCS120V-575WX lamp.
• Affix the JCS120V-575WX Ushio replacement lamp securely in the socket. Improper installation of the Ushio JCS120V-575WX replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
• Keep the temperature of the Ushio JCS120V-575WX lamp seal below 350C.
• Keep the temperature of the JCS120V-575WX Ushio replacement lamp wall above 250C.
• Keep the temperature of the Ushio JCS120V-575WX lamp wall below 800C.
• Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
• Ushio JCS120V-575WX replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
• Operate the Ushio JCS120V-575WX replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
• Use an external fuse when required.
• Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
