Ushio JCV120V-75WGB/BA15d - 1000986

JCV120V-75WGB/BA15d
Ushio
Lamp JCV120V-75WGB/BA15d
Description 120V 75W DC Bay (BA15d) Clear
Brand Ushio
MPN 1000986
UPC 048777164822

$11.42

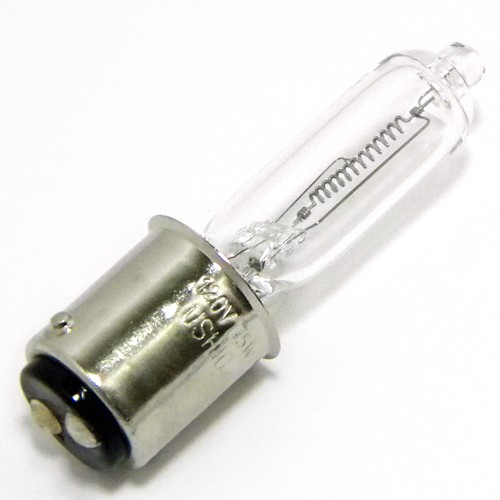

The JCV120V-75WGB/BA15d Ushio 1000986 is a Halogen T4 120V 75W Lamp with a BA15d base.
Specifications for the 1000986 Ushio JCV120V-75WGB/BA15d Replacement Lamp
GENERAL CHARACTERISTICS
Shape T4
Lamp Base BA15d (Double Contact Bayonet)
Filament CC-8
Bulb Finish Clear
Rated Life 1000 hours
Light Center Length - LCL 1.38in (35.00mm)
Operating Position Universal
PHOTOMETRIC CHARACTERISTICS
Initial Lumens 1200
Color Temperature 2800 K
ELECTRICAL CHARACTERISTICS
Watts 75 W
Volts 120 V
DIMENSIONS
Maximum Overall Length - MOL 2.32in (59.00mm)
Diameter 0.47in (12.00mm)
PRODUCT INFORMATION
Product Code 1000986
Family Name Ushio JCV Series Single Ended Bayonet Tungsten Halogen Lamps
Description JCV120V-75WGB/BA15d
SKU Qty 1
Case Qty (Price Listed is Per Bulb) 10
Sales Unit Each
UPC 048777164822
Ushio JCV120V-75WGB/BA15d 1000986 Replacement Bulb Applications & Features

Features

  • Ushio JCV120V75WGB Clear Halogen Bulb
  • Single Ended Lamp
  • Only for Use in Approved Enclosed Halogen Fixtures
JCV120V-75WGB/BA15d Ushio Halogen Lamp

  • DANGER! The Ushio JCV120V-75WGB/BA15d replacement lamp operates at extremely high temperatures that can cause serious physical injuries and property damage.
  • Only use the Ushio JCV120V-75WGB/BA15d replacement lamp in Halogen-approved fixtures. Fixtures should fully contain any parts of the Halogen lamp upon the event of a lamp burst.
  • Do not use the JCV120V-75WGB/BA15d Ushio replacement lamp in close proximity of paper, cloth or other combustible materials that can cause a fire hazard.
  • Lamps are very fragile. Do not drop, crush, bend or shake them. Vibration or impact will cause filament breakage and short lamp life.
  • Do not touch the Ushio JCV120V-75WGB/BA15d bulb surface or inside reflectors with your bare hands. Oils from skin can lead to breakage or shorten the life of the lamp. Use clean gloves or lint-free cloth for installation and removal.
  • Clean any dirt, oil, or lint away from the bulb with alcohol and a lint-free cloth or tissue. Any foreign particles or materials on the JCV120V-75WGB/BA15d Ushio replacement bulb surface can cause hot spots on the bulb and result in lamp failure.
  • Never touch the Ushio JCV120V-75WGB/BA15d lamp when it is on, or soon after it has been turned off, as it is hot and may cause serious burns.
  • Do not look directly at the operating bulb for any period of time; this may cause serious eye injury.
  • Always turn off the electrical power before inserting, removing, or cleaning the replacement Ushio JCV120V-75WGB/BA15d lamp.
  • Affix the JCV120V-75WGB/BA15d Ushio replacement lamp securely in the socket. Improper installation of the Ushio JCV120V-75WGB/BA15d replacement lamp will cause electrical arcing, overheating and short life to lamp and socket. Replace lamp holders and sockets when necessary.
  • Keep the temperature of the Ushio JCV120V-75WGB/BA15d lamp seal below 350C.
  • Keep the temperature of the JCV120V-75WGB/BA15d Ushio replacement lamp wall above 250C.
  • Keep the temperature of the Ushio JCV120V-75WGB/BA15d lamp wall below 800C.
  • Make sure lamps of specified wattage and voltage are only used in appropriately rated fixtures. Unspecified use will lead to short lamp life, breakage and overheating of fixture.
  • Ushio JCV120V-75WGB/BA15d replacement lamps should not be operated beyond the total rated voltage. Avoid the use of dimmers that may drive your lamp over its rated voltage.
  • Operate the Ushio JCV120V-75WGB/BA15d replacement lamp only in the indicated burn position. Failure to do so will lead to overheating and shortened lamp life.
  • Use an external fuse when required.
  • Do not allow one lamp to directly expose another. This may lead to overheating and shortened lamp life.
