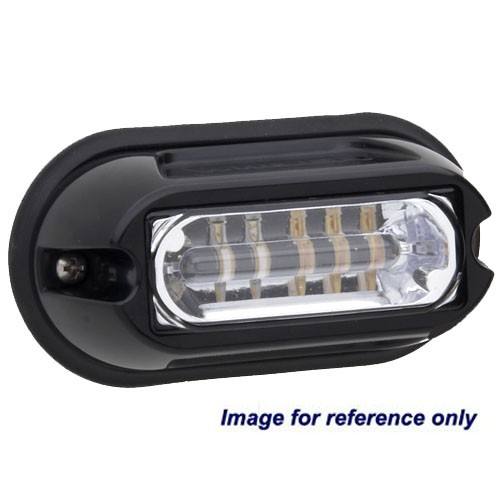

Whelen LINZ6C - 01-066B043-34B
| Lighthead | LINZ6C |
| Brand | Whelen |
| Lens Color | Clear |
| LED Color | White |
| Mount | Horizontal, surface |
| Cable | 6" Pigtail |
| Volts | 12 VDC |
Featuring Whelen's innovative optic technology, V-Series Super-LED® lightheads are versatile and efficient. Hard-coated lenses minimize environmental damage from sand, sun, salt, and road chemicals.
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects and/or other reproductive harm. See more information at https://whelen.com/regulatory
Specifications for 01-066B043-34B Whelen LINZ6C Replacement Lighthead
| GENERAL CHARACTERISTICS | |
| Lens Color | Clear |
| LED Color | White |
| Mount | Horizontal, surface |
| Flash Pattern | 25 Scan-Lock™ |
| Technology | LINZ6 Super-LED |
| Encapsulated | Yes |
| Optics | Directional |
| ELECTRICAL CHARACTERISTICS | |
| Volts | 12 VDC |
| Amps | 0.75 Peak / 0.30 Average |
| DIMENSIONS | |
| Height | 2.00in (48.00mm) |
| Width | 4.00in (102.00mm) |
| Depth | 1.625in (40.00mm) |
| PRODUCT INFORMATION | |
| Product Code | 01-066B043-34B |
| Series | LINZ6™ Linear Super-LED® |
| Description | LINZ6C |
| SKU Qty | 1 |
| Sales Unit | Each |
Whelen LINZ6C 01-066B043-34B Replacement Lighthead Applications & Features
- Models have 2-in-1 combination warning and puddle light
- Warning segment has 25 Scan-Lock™ flash patterns
- Six inch pigtail with sync wire allows up to eight lightheads to be synchronized together for the warning segment of the lighthead
- Amp Draw @ 12 VDC, Warning: 0.75/A, Puddle: 0.12/A
- Size: 1-9/16" (40mm) H x 1-5/8" (42mm) D x 3-7/8" (98mm) L
- SAE J595
Literature for the Whelen LINZ6C 01-066B043-34B Replacement Lighthead
 Whelen LINZ6C Installation Guide |
Warranty information for the Whelen LINZ6C 01-066B043-34B Replacement Lighthead
| Whelen LINZ6™ Linear Super-LED® Automotive Warranty Information |
