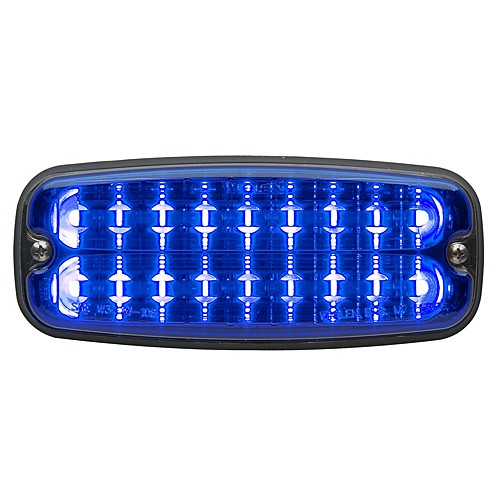

Whelen M7B - 01-066A796-B0K

Whelen
Lighthead M7B
Brand Whelen
Dome / Lens Color Blue
Mount Surface
LED Color Blue
Volts 12 VDC

$159.25

Options
M7FC - Chrome Flange, M7 Series $12.61
M7FB - Black Flange, M7 Series $7.00
With a unique lens shape and patented Linear-LED® designed reflector assembly, M Series lightheads are completely illuminated for unmatched high intensity warning and low current consumption.
Specifications for 01-066A796-B0K Whelen M7B Replacement Lighthead
GENERAL CHARACTERISTICS
Dome / Lens Color Blue
LED Color Blue
Mount Surface
Flash Pattern 159 Scan-Lock™
Technology Super-LED
Optics Directional
ELECTRICAL CHARACTERISTICS
Volts 12 VDC
Amps 2.25/peak, 0.9/avg
DIMENSIONS
Height 3.375in (86.00mm)
Width 7.625in (194.00mm)
Depth 1.375in (35.00mm)
PRODUCT INFORMATION
Product Code 01-066A796-B0K
Series M7
Description M7B
SKU Qty 1
Sales Unit Each
Whelen M7B 01-066A796-B0K Replacement Lighthead Applications & Features

Features

  • Multiple Scan-Lock™ flash patterns, many being California Title XIII compliant. Meets KKK-1822F, NFPA 1901, NFPA 1917, SAE, and EC65 specifications
  • Choose flash patterns from solid, left/right, top/bottom, in/out, or diagonal sequencing
  • Hard-coated lenses minimize environmental damage from sand, sun, salt, and road chemicals
  • Solid color models have 159 Scan-Lock™ flash patterns
  • Surface mounts via two screws for easy installation
  • Five year warranty
