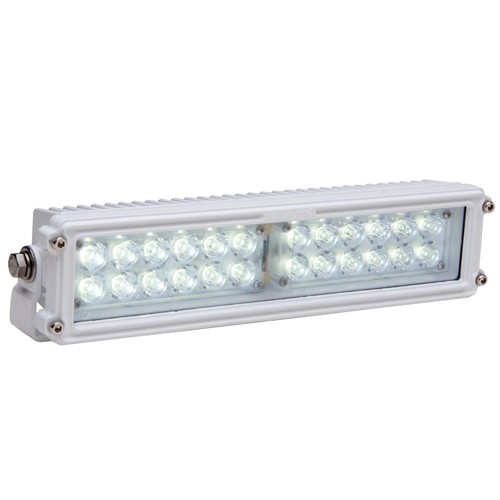

Whelen PSL2B - 01-0687295-11A
Just under three inches in height, Pioneer SlimLine has all the reliability, rugged working characteristics and advantages of larger Pioneers in a more compact package.
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects and/or other reproductive harm. See more information at https://whelen.com/regulatory
Specifications for 01-0687295-11A Whelen PSL2B Replacement Lighthead
| GENERAL CHARACTERISTICS | |
| Mount | Bail/Stud |
| ELECTRICAL CHARACTERISTICS | |
| Watts | 78.3 W |
| Volts | 12 VDC |
| Amps | 6.1 |
| DIMENSIONS | |
| Height | 3.00in (76.00mm) |
| Width | 12.50in (317.00mm) |
| Depth | 1.88in (48.00mm) |
| PRODUCT INFORMATION | |
| Product Code | 01-0687295-11A |
| Series | SlimLine™ |
| Family Name | Pioneer |
| Description | PSL2B |
| SKU Qty | 1 |
| Sales Unit | Each |
Whelen PSL2B 01-0687295-11A Replacement Lighthead Applications & Features
Features
- Rugged, die-cast aluminum housing, powder coated.
- Remarkably bright and rated to last thousands of hours with low amp draw.
- Dual unit comes with 3 lenses: Dual spot lens with 8° optics (installed), Dual flood lens with 40° horizontal x 20° vertical optics and Dual spot/flood combination lens with 8° spot optics and 40° horizontal x 20° vertical flood optics.
- Interchange lenses as needed to create dynamic spot/flood combinations.
- Powder coated bail mount works for vertical or horizontal mounting.
- Five year HDP® Heavy-Duty Professional Warranty.
Literature for the Whelen PSL2B 01-0687295-11A Replacement Lighthead
 Whelen Pioneer Series |
| Whelen PSL2B Installation Guide |
Warranty information for the Whelen PSL2B 01-0687295-11A Replacement Lighthead
| Whelen SlimLine™ Automotive Warranty Information |
