Whelen R1LPHVA - 01-0684742A1VH
| Lightbar | R1LPHVA |
| Brand | Whelen |
| SAE | Class 1 Certified |
| Dome Color | Amber |
| LED Color | Amber |
| Profile | Low |
| Mount | Magnetic/Suction |
| Volts | 12 VDC |

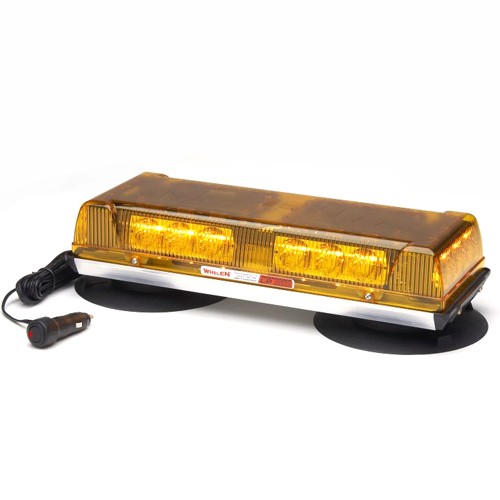

Now a low profile, mini-lightbar that provides all the high performance LED warning and signalling benefits in a smaller size that fits all your special applications. Super-LED modules in a rugged aluminum base are built to take the roughest conditions and long hours you face. They’re road tested, vibration and moisture resistant and use much lower current than other warning lights. Put a Responder LP to work on your utility, security, fleet, construction or public works vehicle.
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects and/or other reproductive harm. See more information at https://whelen.com/regulatory
Specifications for 01-0684742A1VH Whelen R1LPHVA Replacement Lightbar
| GENERAL CHARACTERISTICS | |
| Dome Color | Amber |
| LED Color | Amber |
| Mount | Magnetic/Suction |
| Base | Aluminum |
| Profile | Low |
| Flash Pattern | ActionScan™ default |
| Technology | CON3 Super-LED |
| SAE | Class 1 Certified |
| ELECTRICAL CHARACTERISTICS | |
| Volts | 12 VDC |
| Amps | 3.0 Peak / 1.2 Average |
| DIMENSIONS | |
| Height | 3.25in (82.00mm) |
| Width | 17.00in (431.00mm) |
| Length | 6.313in (160.00mm) |
| PRODUCT INFORMATION | |
| Product Code | 01-0684742A1VH |
| Series | Responder LP R1 Mini Lightbar |
| Description | R1LPHVA |
| SKU Qty | 1 |
| Sales Unit | Each |
Whelen R1LPHVA 01-0684742A1VH Replacement Lightbar Applications & Features
Features
- Super-LED® low profile conical (CON3™) mini lightbar.
- Magnetic versions include: four 50 lb. pull magnets, 8’ straight cord, cigar plug with LED indicator On/Off switch and pattern selection switch.
- Polycarbonate dome with smooth exterior will not gather dirt and dust.
- Manufactured in America
Literature for the Whelen R1LPHVA 01-0684742A1VH Replacement Lightbar
 Whelen R1LPHVA Mini Light Bar Brochure |
| Whelen R1LPHVA Installation Guide |
Warranty information for the Whelen R1LPHVA 01-0684742A1VH Replacement Lightbar
| Whelen Responder LP R1 Mini Lightbar Automotive Warranty Information |
Dimensions for the R1LPHVA Whelen Responder LP R1 Mini Lightbar
 |
Mounting for the Responder LP R1 Mini Lightbar Whelen R1LPHVA
 |
