Whelen R2LPMA - 01-0684791A1MG
| Lightbar | R2LPMA |
| Brand | Whelen |
| SAE | Class 1 Certified |
| Dome Color | Amber |
| LED Color | Amber |
| Profile | Low |
| Mount | Magnetic |
| Volts | 12 VDC |

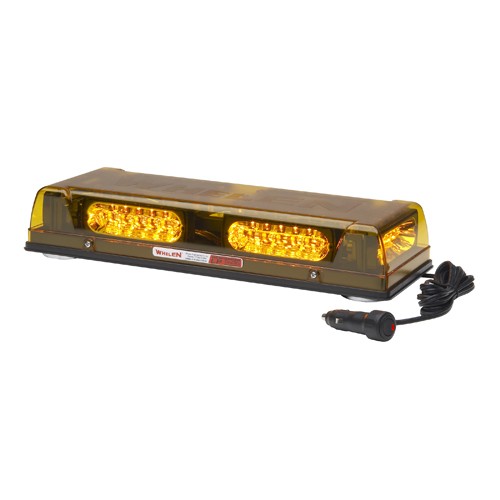

Responder LP Series mini lightbars feature dual-level Super-LED modules, providing 360° of warning coverage.
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects and/or other reproductive harm. See more information at https://whelen.com/regulatory
Specifications for 01-0684791A1MG Whelen R2LPMA Replacement Lightbar
| GENERAL CHARACTERISTICS | |
| Dome Color | Amber |
| LED Color | Amber |
| Mount | Magnetic |
| Base | Polycarbonate |
| Profile | Low |
| Flash Pattern | ActionScan™ default |
| Technology | LIN6 Super-LED |
| SAE | Class 1 Certified |
| ELECTRICAL CHARACTERISTICS | |
| Volts | 12 VDC |
| Amps | 6.0 Peak / 2.4 Average |
| DIMENSIONS | |
| Height | 2.845in (73.00mm) |
| Width | 17.00in (431.00mm) |
| Depth | 6.313in (160.00mm) |
| PRODUCT INFORMATION | |
| Product Code | 01-0684791A1MG |
| Series | Responder LP R2 Mini Lightbar |
| Description | R2LPMA |
| SKU Qty | 1 |
| Sales Unit | Each |
Whelen R2LPMA 01-0684791A1MG Replacement Lightbar Applications & Features
Features
- Class 1 Certified
- Super-LED® low profile linear (LIN6™) mini lightbar
- Polycarbonate base
- Includes 10’ straight cord, cigar plug with LED indicator On/OFF and pattern selection switch
- Includes four 50 lb pull magnets
- Polycarbonate dome with smooth exterior will not gather dirt and dust
- 6.0 amp draw (peak), 2.4 amp draw (avg)
- Manufactured in America
Literature for the Whelen R2LPMA 01-0684791A1MG Replacement Lightbar
 Whelen R2LPMA Mini Light Bar Brochure |
| Whelen R2LPMA Mini Light Bar Installation Guide |
Warranty information for the Whelen R2LPMA 01-0684791A1MG Replacement Lightbar
| Whelen Responder LP R2 Mini Lightbar Automotive Warranty Information |
Dimensions for the R2LPMA Whelen Responder LP R2 Mini Lightbar
 |
Mounting for the Responder LP R2 Mini Lightbar Whelen R2LPMA
 |
