Whelen R416AF - 01-0687401A11K
| Beacon | R416AF |
| Brand | Whelen |
| SAE | Class 1 Certified |
| Dome Color | Amber |
| LED Color | Amber |
| Profile | Medium |
| Mount | Permanent |
| Cable | 6 Input Pigtails |
| Volts | 12 VDC |

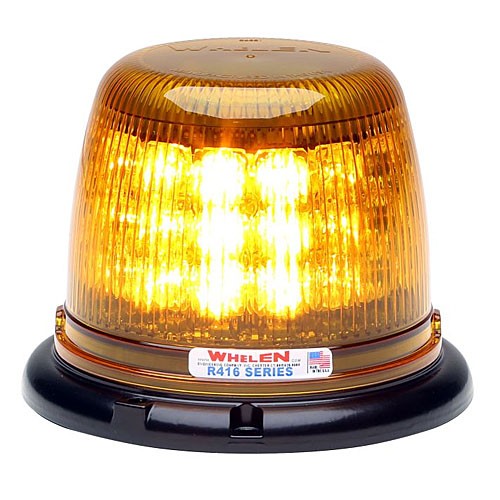

Whelen's R416 Rota-Beam features solid-state "rotating" technology, simulating the appearance of a rotating beacon without any moving parts or motors for long-life reliability. This Whelen R416AF ROTA-BEAM™ Super-LED® Beacon has an Amber Dome and Flat Mount.
WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects and/or other reproductive harm. See more information at https://whelen.com/regulatory
Specifications for 01-0687401A11K Whelen R416AF Replacement Beacon
| GENERAL CHARACTERISTICS | |
| Dome Color | Amber |
| LED Color | Amber |
| Mount | Permanent |
| Base | Powder Coated Cast Aluminum |
| Profile | Medium |
| Flash Pattern | 32 Scan-Lock™ flash patterns, with varying rotating flash rates. Includes cruise light. |
| SAE | Class 1 Certified |
| ELECTRICAL CHARACTERISTICS | |
| Volts | 12 VDC |
| Amps | 2.25 amps @ 12 VDC |
| DIMENSIONS | |
| Diameter | 6.00in (152.00mm) |
| Height | 4.875in (123.00mm) |
| Width | 6.438in (163.00mm) |
| PRODUCT INFORMATION | |
| Product Code | 01-0687401A11K |
| Series | ROTA-BEAM™ Super-LED® R416 |
| Description | R416AF |
| SKU Qty | 1 |
| Sales Unit | Each |
Whelen R416AF 01-0687401A11K Replacement Beacon Applications & Features
Features
- SAE Class 1 Certified.
- Medium profile, solid-state rotating Super-LED beacon with a smooth self-cleaning outer dome.
- 100% Solid-state, no moving parts, no motors to wear out or malfunction.
- Conformal coated electronics provide moisture and vibration resistance.
- Thirty-two Scan-Lock™ flash patterns, with varying rotating flash rates, offer you almost unlimited warning and signaling choices. Cruise light included.
- Permanent mount model supplied with six input pigtails.
- Synchronizable with up to eight other Whelen 360° synchronous beacons.
- Heavy-duty powder coated die-cast base with rugged polycarbonate dome.
- Five year HDP® Heavy-Duty Professional warranty
- Manufactured in America
Literature for the Whelen R416AF 01-0687401A11K Replacement Beacon
 Whelen R416 Rota-Beam Product Sheet |
| Whelen R416 Rota-Beam Installation Guide |
Warranty information for the Whelen R416AF 01-0687401A11K Replacement Beacon
| Whelen ROTA-BEAM™ Super-LED® R416 Automotive Warranty Information |

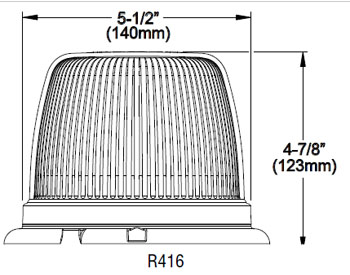

Dimensions for the R416AF Whelen ROTA-BEAM™ Super-LED® R416
 |

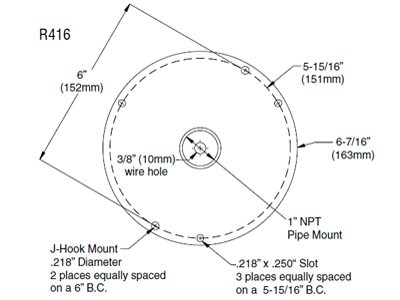

Mounting for the ROTA-BEAM™ Super-LED® R416 Whelen R416AF
 |
