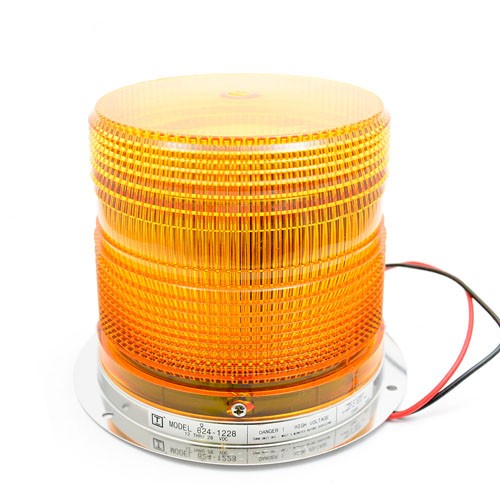

Tomar 824-1228 Amber - 824-1228-A

Tomar
Brand Tomar
Lens Amber
Mount Universal with 10” leads (flange included)
Voltage 12 - 28VDC
MPN 824-1228-A

$370.53

In Stock

Options
BKT - Mounting bracket $47.78
G800 - Heavy Duty Guard $55.18
Replacement Parts
4001 $71.14
The model 824 family is a medium profile, multi-flash strobe light which can be changed by the customer from double flash to quad flash operation. It features universal mounting, full size 360° Lexan® lens, high efficiency regulated solid state power supply, and heavy duty xenon strobe lamp. DC units have polarity protection and builtin filters to protect against radio interference and spike voltages. AC units are designed to withstand multiple line transient spikes of 6000V without damage. The model 824 strobe features a fully potted, Lexan®, multi-purpose mounting base which is vibration and water resistant, and has a plug-in strobe lamp and photocell which can be activated to automatically reduce intensity during nighttime operation.
Specifications for the Tomar 824-1228 Amber Replacement Beacon
GENERAL CHARACTERISTICS
Lens Color Amber
Voltage 12 - 28VDC
Flashes per Min (FPM) 68 to 72 double flashes per minute, 58 to 62 quad multi-flashes per minute
Encapsulation Fully potted in urethane material with no exposure to High Voltage possible
Mount Universal with 10” leads (flange included)
Amperage 12-28VDC draws 2.2 to 2.4A @ 12V tapering to 1.2 to 1.4A @ 28V at hi intensity
Operating Temperature -40 C to 65 C
Light Output 1020/1200 effective candlepower (ECP)
ELECTRICAL CHARACTERISTICS
Joules 17 joules per double flash. 1,700,000 Peak Candlepower, 25 joules per quad multi-flash. 2,500,000 Peak Candlepower
DIMENSIONS
Height 6.75in (171.45mm)
Diameter 5.50in (140.00mm)
PRODUCT INFORMATION
Series 824 Multi Strobe
Family Name Medium-profile Double / Quad Flash Strobe, DC
Description 824-1228 Amber
SKU Qty 1
Sales Unit Each
Tomar 824-1228 Amber 824-1228-A Replacement Beacon Applications & Features

Features

  • Universal mounting with 10" leads
  • 800–FLG Flange Included
  • Built-in RFI filters
  • Solid state power supply
  • Xenon strobe lamp
  • 5 year warranty on power supply
  • 1 year warranty on lamp
  • 1200 ECP
Literature for the Tomar 824-1228 Amber 824-1228-A Replacement Beacon

PDF IconTomar 824-1228 Amber DC Installation Guide
PDF IconTomar 824-1228 Amber Specifications
